Products > Battery > VRLA Battery > 12V5a Deep Cycle Solar Battery

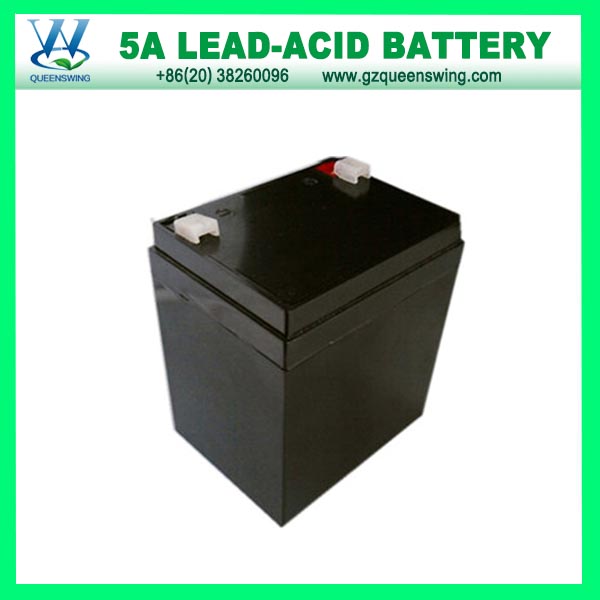

Product name : 12V5a Deep Cycle Solar Battery
Item : QW-BV5A
 Enlarge Image                   Back
             [Next Product]→


Details:
 12V5AH deep cycle solar battery


QueensWing Battery:
Vrla battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A
Gel battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A

Main Characteristic:

1. Maintenance-Free Operation
Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of Prostar batteries, no need to check the specific gravity of the electrolyte or add water.

2. Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.

3. Long Service Life
A unique corrosion-resistant grid alloy ensures Prostar batteries have long service life.

4. Low Self Discharge
Using high purity raw materials ensures Prostar batteries have less self-discharge.

5. Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.

Applied Scope:
1)Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers, Radio and Broadcasting Stations.
2)Motivity Field: Robots, Electric Toys, Electric Tools&Portable Vacuum Cleaners.
3)Solar&Wind Power Generation Systems
4)EPS&UPS Systems

Specifications:

Nominal Voltage 12V
 Nominal Capacity (20 hour rate) 5Ah
Capacity
25 o C
(77°F)
10 hour rate (0.71A) 4.7Ah
5 hour rate (1.34A) 3.8Ah
1 hour rate (4.95A) 2.95Ah
Internal Resistance Full Charged Battery 25 o C
≤21mΩ
Capacity affected by Temperature
(10 hour )
40 o C
(104°F)
102%
25 o C
(77°F)
100%
0 o C
(32°F)
85%
-15 o C
(5°F)
65%
Self-Discharge
25 o C
(77°F) Capacity
after 3 month storage 90%
after 6 month storage 80%
after 12 month storage 62%
Charge (Constant Voltage) 25 o C
(77°F)
Float Initial Charging Current Less than 2.25A
Voltage13.6-13.8V
Cycle Initial Charging Current Less than 2.25A
Voltage 14.4-15.0V
Battery Dimensions Length 151mm
Width 65mm
Height 95mm
Total Height 101mm
Box Dimensions Length 364mm
Width 165mm
Height 141mm
Quantity Per Box 5 pcs per box
Net weight Per Cell 2.0kg±100g
Net weight Per Box 11.25kg
Gross Weight 11.7kg
