Product name : Miantenance free gel 12V150AH solar battery
Item : QW-BG150A
 Enlarge Image                   Back
             [Next Product]→


Details:

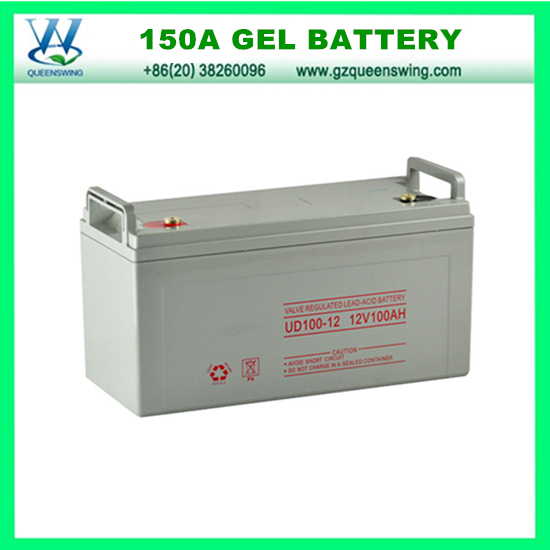

Miantenance free gel 12V150AH solar battery

Applied Scope :

1)Communication Systems:Switch,Microwave Stations,Mobile Base Stations,Data Centers,Radio and Broadcasting Stations.

2)Motivity Field:Robots,Electric Toys,Electric Tools&Portable Vacuum Cleaners.

3)Solar&Wind Power Generation Systems

4)EPS&UPS Systems

→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→

Main Characteristic :

maintenance-Free Operation

Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance.During the expected float service life of  batteries,no need to check the specific gravity of the electrolyte or add water.

Good Discharging Ability

Tight assembly technology ensures an excellent high-rate discharge performance.

Long Service Life

A unique corrosion-resistant grid alloy ensures Prostar batteries have long service life.

Low Self Discharge

Using high purity raw materials ensures Prostar batteries have less self-discharge.

Environmental & Non-polluting

Gas Recombination technology ensures the battery high seal reacting rate,which can prevent the acid fog from separating out.

→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→

Technical Specification :

Nominal Voltage

12V

 Nominal Capacity (20 hour rate)

150Ah

Capacity

25oC

(77°F)

10 hour rate (13.6A)

136Ah

5 hour rate (24A)

120Ah

1 hour rate (88.3A)

88.3Ah

Internal Resistance

Full Charged Battery 25oC

≤3.5mΩ

Capacity affected by Temperature

(10 hour )

40oC

(104°F)

102%

25oC

(77°F)

100%

0oC

(32°F)

85%

-15oC

(5°F)

65%

Self-Discharge

25oC

(77°F) Capacity

after 3 month storage

90%

after 6 month storage

80%

after 12 month storage

62%

Charge (Constant Voltage) 25oC

(77°F)

Float

Initial Charging Current Less than 30A

Voltage 13.6-13.8V

Cycle

Initial Charging Current Less than 30A

Voltage 14.4-14.9V

Battery Dimensions

Length

484mm

Width

171mm

Height

241mm

Total Height

241mm

Box Dimensions

Length

499mm

Width

185mm

Height

299mm

Quantity Per Box

1 PC per box

Net weight Per Cell

38 kg±400g

Net weight Per Box

38kg

Gross Weight

39kg
