Products > Power Inverter > Modified Sine Wave Power Inverter with UPS Charger > 1000W UPS Power Inverter Charger with digital display

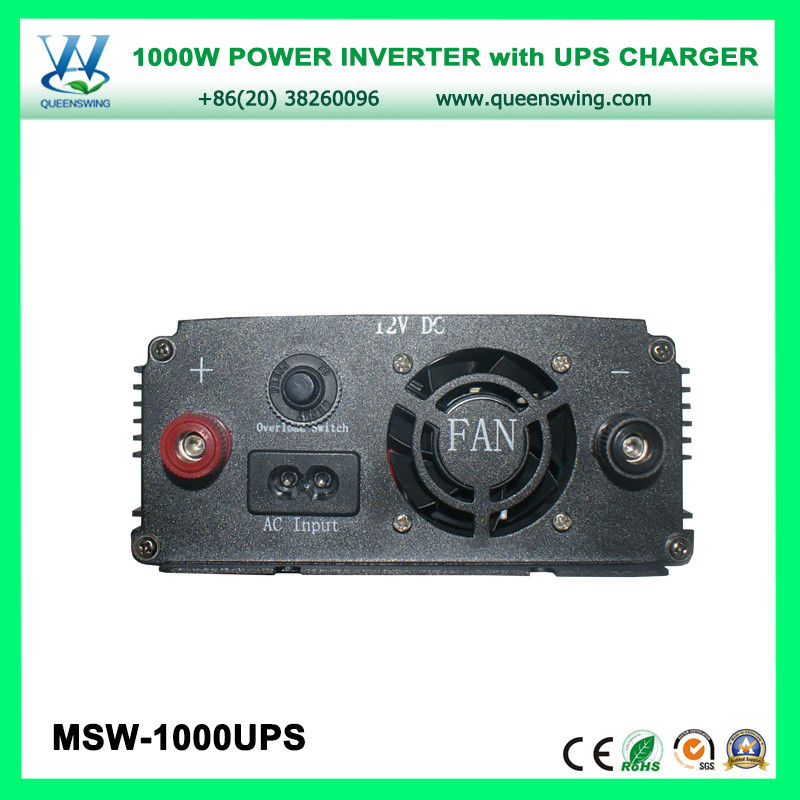

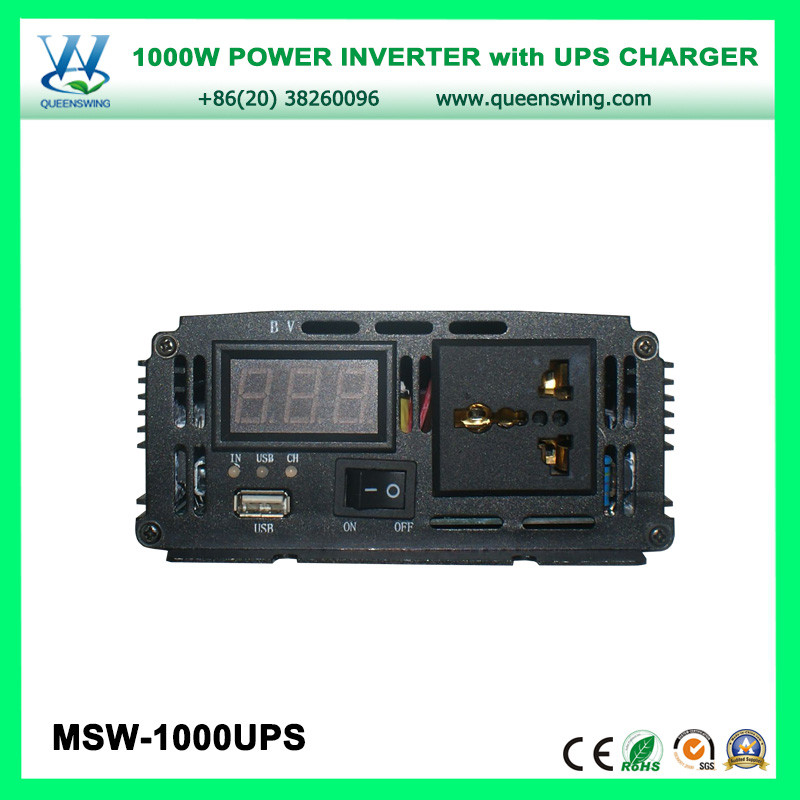

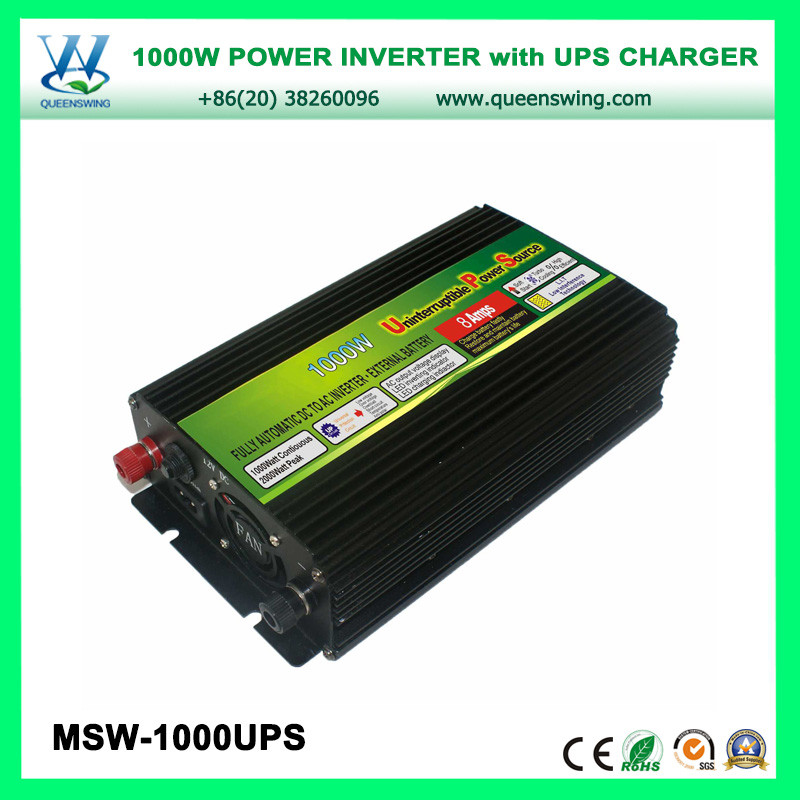

Product name : 1000W UPS Power Inverter Charger with digital display
Item : QW-M1000UPS
Price : Please contact us
 Enlarge Image                   Back
             [Next Product]→


Details:


Inverter is a power equipment that can change DC(storage battery, solar cell, wind dynamo etc.) to AC.
This inverter use high frequency power conversion technology and the ferrite transformer instead of the old bulky silicon steel transformer, that is why power inverter is lighter, smaller than other similar inverter.

  • CE & Rohs & SGS was approved.

  • Upgrade big aluminium housing case and intelligent cooling fans, improve cooling ability, save enery and lengten the use life.

  • Voltage display: digital display

  • Maximum 1000W continuous output and 2000W surge power.

  • UPS(Uninterruptible Power Supply)with Charging function: When commercial power is on, inverter use commercial power; when commercial power is off, inverter will be transfer to use battery power and charging automatically, and the transfer time is less 10mS.


Technical Parameter:

Model No. MSW-1000UPS
Rated power 1000W
Peak power 2000W
Transfer efficiency ≥94%
Input voltage 12Vdc 24Vdc
Input voltage range 10-15Vdc 20-30Vdc
Output voltage 110Vac 220Vac
Output voltage range 110Vac±5% or 220Vac±5%
Voltage display digital display
Frequency 50Hz±2% or 60Hz±2%
No load current 0.7A 0.5A
Waveform Modified Sine Wave
Low voltage alarm(DC) 10.5Vdc 21Vdc
Low voltage protection(DC) 10Vdc 20Vdc
Over voltage protection(DC) 15.5Vdc 31Vdc
USB port yes
UPS transfer  Inverter use city power first, when city power cut off suddently,
inverter transfer to use battery power auto, and the transfer time is ≤10mS
Charge current 10A 6A
Over-load Protection 1000W-1100W
Cooling Way Intelligent Cooling Fans
Fan Start Temperature ≥40±5
Temperature Protection 70±5
Packaged 1*pair battery cable(red & black)
1*charge cable
1*english user manual
1*neutral packing box
Dimension Inverter: 260*150*78mm/2.5kg
Carton: 460*260*170mm/10kg/4pcs
Certifications CERohs


Protect functions:

1. Over load protection

2. Over current protection

3. Over voltage protection

4. Low voltage protection

5. Surge protection

6. Short circuit protection

7. High temperature protection

8. Reverse connection protection

9. Internal fuse protection

10. Leakage Protection

Applicable for: ( Solar/Wind/Home System )

1. Travel set equipment

2. Industrial equipment

3. Office equipment

4. Kitchen equipment

5. Household electrical equipment

6. Power tools
