Products > Power Inverter > Pure Sine Wave Power Inverter > 12V 220V 1000W Pure Sine Wave Power Converter

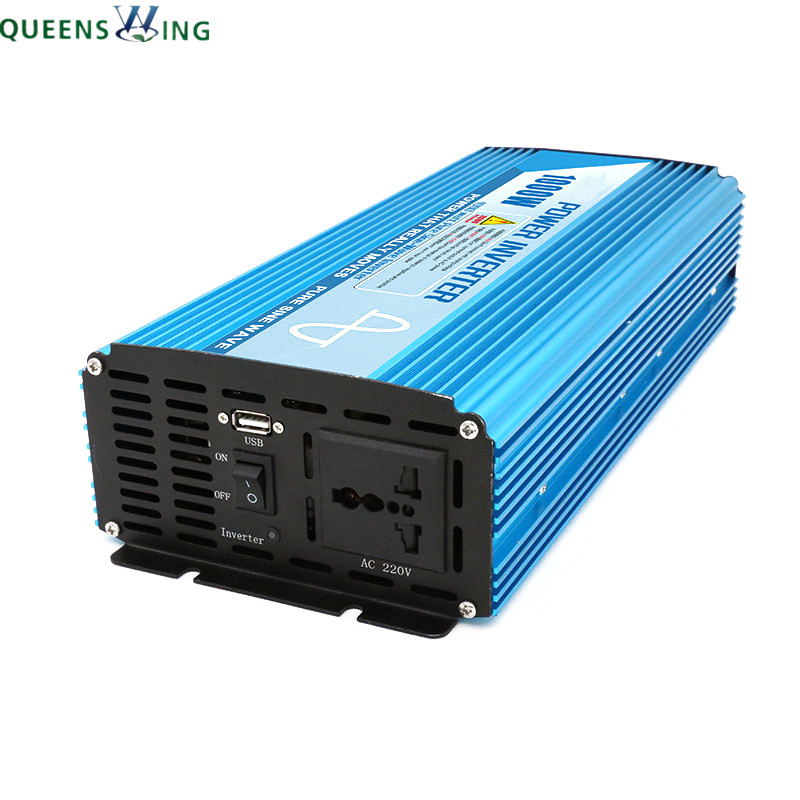

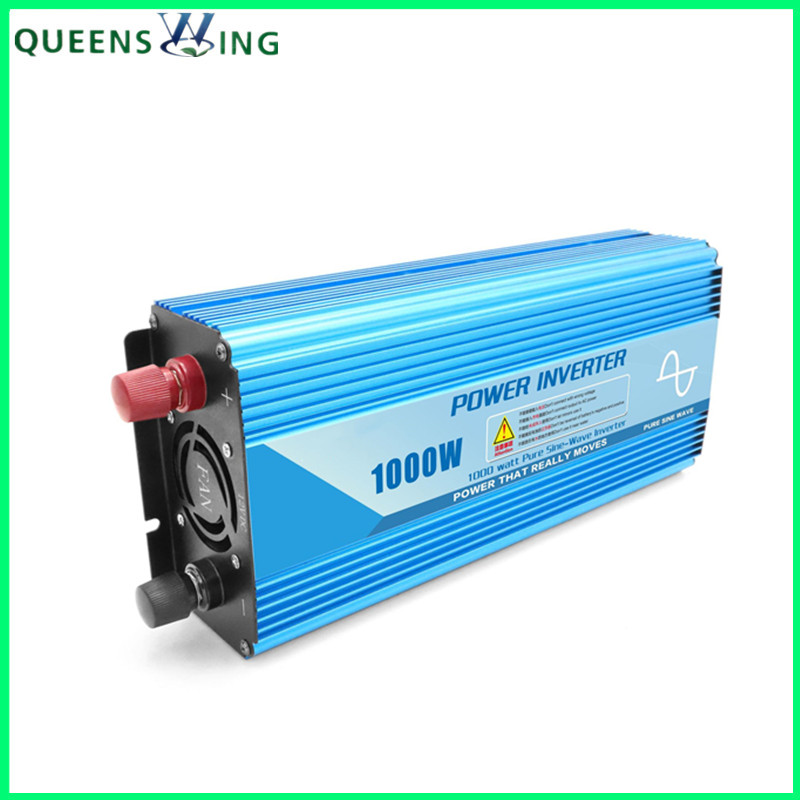

Product name : 12V 220V 1000W Pure Sine Wave Power Converter
Item : QW-P1000
Price : Please contact us
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Feature:
  • The whole process is executed by CPU intelligent program.
  • Pure sine wave output: Relative to the square wave or modified sine wave ( Step wave), it have a stronger effect in loading or load capacity.
  • Available with capacitive load, inductive load and any other type of general-purpose AC load, if it runs a refrigerator, television or radio equipment,  there would be no interference and noise and will not affect the load equipment performance and life.
  • High stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse  and improved protection, stability of the system.
  • Digital intelligent control: The core device is controlled by a powerful micro-controller,  making the external circuit structure being simple, control being flexible and control strategy being powerful, thus ensuring excellent performance  and stability
  • Maximum 1000W continuous output and 2000W surge power.

Technical Parameter:

Model No. PSW-1000
Rated Power 1000W
Peak Power 2000W
Transfer efficiency ≥90%
Circuit Topology push-pull type;
the whole process is executed by CPU intelligent program
Waveform Pure Sine Wave
Waveform Distortion ≤5(linear load)
No Load Current ≦0.5A
Input Voltage 12V or 24V DC (option)
Output Voltage 110V, 120V, 230V or 220V DC (option)
Input Voltage Range 11V~15VDC or 21V~29VDC
Low Voltage Alarm 11VDC±0.5V or 21VDC±0.5V
Over Voltage Cut-off ≥15VDC or ≥29VDC
Output Voltage 220VAC±5%
Over-load Protection 1000W-1100W
Cooling Way Intelligent Cooling Fans
Fan Start Temperature ≥40±5℃
Temperature Protection 70±5℃
Frequency 50Hz or 60Hz ± 0.5%(option)
Protection Input low-voltageInput high-voltage, Over-Load, Short-circuit, Over-temperature and Reverse connection protection.
Green LED indicator Lighting(working);
Flash slow(lack voltage);
Flash fast(fault occur and the unit is in protection situation)
Packaged 1 pair battery cable(red & black)
1 bag fuses
1 english user manual
1 neutral packing box
Dimension Inverter: 240*145*53mm/2.5kg
Carton: 240*145*53mm/11.5kg/4pcs
Certifications CE、Rohs



Application:

1. In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.

2.Industry equipments series: solar energy, wind power, gas discharge lamp and etc.

3.Office area: Computer, printer, copier, scanner, digital camera and etc.

4. Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.

5.House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.

6.Power tool series: electric saw, drilling machine, punching machines,air compressor ect.

Testing Video: https://youtu.be/3wGlA0wd43k
