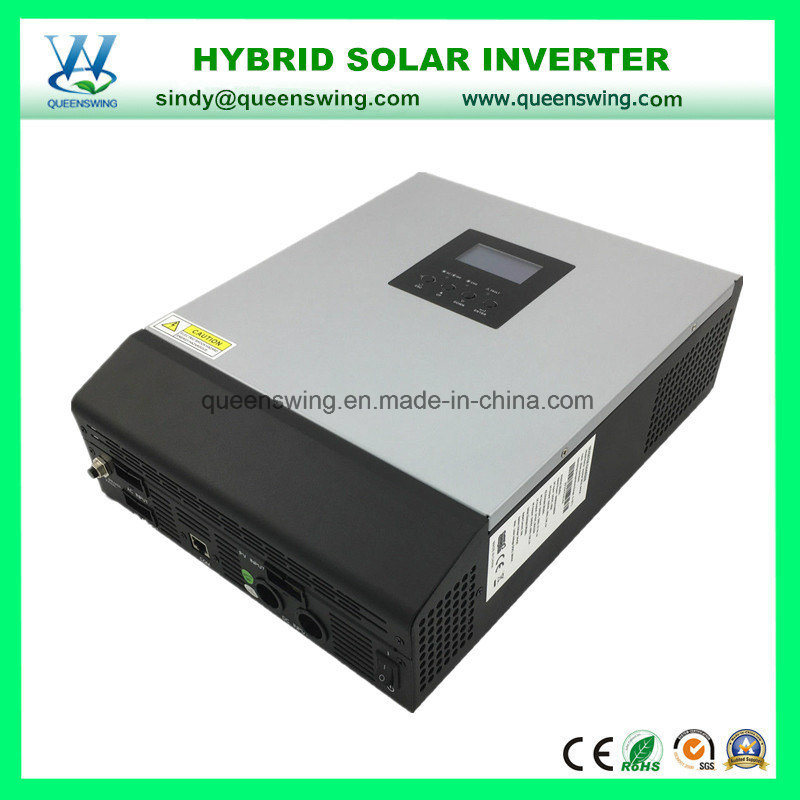

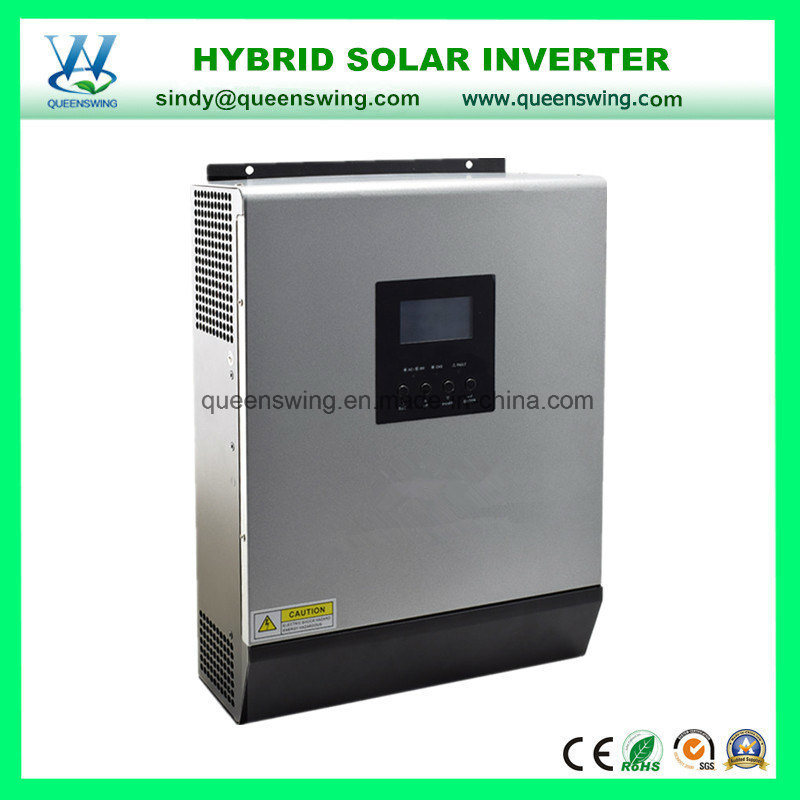

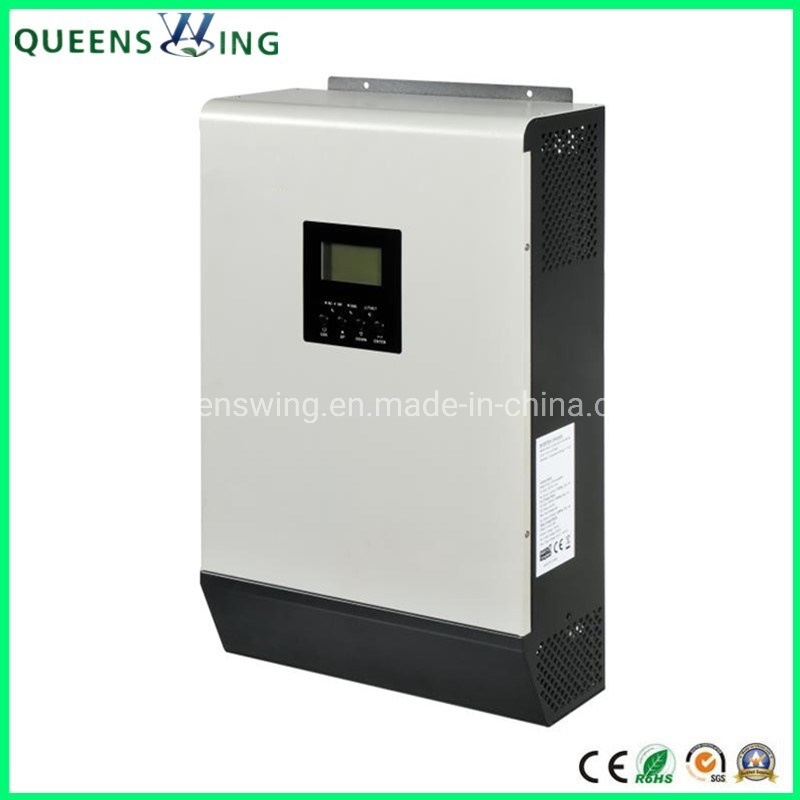

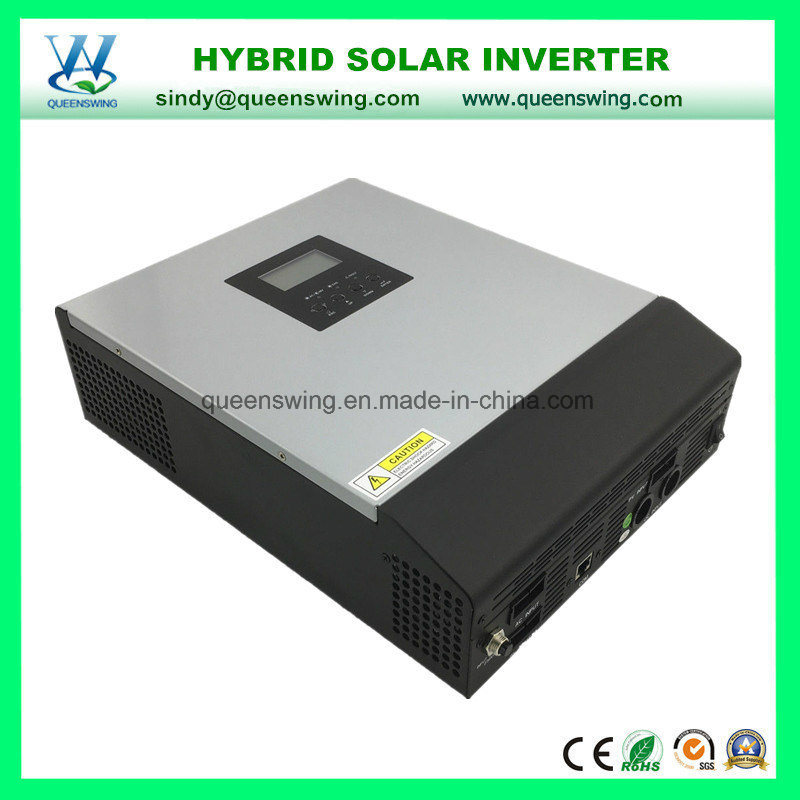

5KVA 48V Off Grid Hybrid Solar Power Inverter with 80A MPPT Controller
This is a multifunction inverter/charger, combining functions of inverter, solar charger and battery charger to offer
uninterrupted power support with portable size. Its comprehensive LCD display offers user-configurable and easy-
accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage
based on different applications.
| 1-5KVA HYBRID SOLAR INVERTER BUILT IN MPPT SOLAR CHARGE CONTROLLER |
| Model |
1K-24V |
2K-24V |
3K-24V |
3K-24V |
4K-48V |
5K-48V |
5K-48V |
| Rated Power |
1000VA/800W |
2000VA/1600W |
3000VA/2400W |
3000VA/2400W |
4000VA/3200W |
5000VA/4000W |
5000VA/4000W |
| INPUT |
| Voltage |
230VAC |
| Selectable Voltage Range |
170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances) |
| Frequency Range |
50 / 60Hz (optional) |
| OUTPUT |
| AC Voltage Regulation(Batt. Mode) |
230 VAC ± 5% |
| Surge Power |
2000VA |
4000VA |
6000VA |
6000VA |
8000VA |
10000VA |
10000VA |
| Efficiency(Peak) |
93% |
| Transfer Time |
10 ms (For Personal Computer)
20 ms (For Home Appliances) |
| Waveform |
Pure Sine Wave |
| BATTERY & AC CHARGER |
| Battery Voltage |
24 VDC |
24 VDC |
24 VDC |
24 VDC |
48 VDC |
48 VDC |
48 VDC |
| Floating Charge Voltage |
27 VDC |
27 VDC |
27 VDC |
27 VDC |
54 VDC |
54 VDC |
54 VDC |
| Overcharge Protection |
31 VDC |
31 VDC |
31 VDC |
31 VDC |
62 VDC |
62 VDC |
62 VDC |
| Maximum Charge Current |
0A or 10A/20A |
20A or 30A |
20A or 30A |
20A or 30A(Max 60A) |
20A or 30A(Max 60A) |
20A or 30A(Max 60A) |
20A or 30A(Max 60A) |
| SOLAR CHARGER(OPTION) |
| Maximum PV Array Power |
600W |
600W |
600W |
1500W |
3000W |
3000W |
4000W |
| MPPT Range @ Operating Voltage |
30VDC-66VDC |
30VDC-66VDC |
30VDC-66VDC |
30VDC-115VDC |
60VDC-115VDC |
60VDC-115VDC |
60VDC-115VDC |
| Maximum PV Array Open Circuit Voltage |
75 VDC |
75 VDC |
75 VDC |
145 VDC |
145 VDC |
145 VDC |
145 VDC |
| Maximum Charging Current |
25A |
25A |
25A |
60A |
60A |
60A |
80A |
| Maximum Efficiency |
98% |
| Standby Power Consumption |
2W |
| PHYSICAL |
| Dimension, D x W x H(mm) |
430x350x240 |
430x350x240 |
430x350x240 |
430x350x240 |
610x390x250 |
610x390x250 |
540x350x240 |
| Gross Weight(kg) |
9.4 |
10.6 |
12.0 |
13.0 |
14.0 |
15.0 |
15.0 |
| OPERATING ENVIRONMENT |
|
| Humidity |
5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature |
0ºC - 45°C |
| Storage Temperature |
-15ºC - 60°C |
| Product specifications are subject to change without further notice |
| MODEL |
1K-24 |
2K-24 |
3K-24 |
3K-24 |
4K-48 |
5K-48 |
5K-48 |
| Inverter Power |
800W |
1600W |
2400W |
2400W |
3200W |
4000W |
4000W |
| Pmax.generated from solar charger |
25Amp, 600W |
25Amp, 600W |
25Amp,600W |
60Amp,1500W |
60Amp, 3000W |
60Amp, 3000W |
80Amp, 4000W |
| Best Panel Configuration |
500Wp
(250Wp x 2pcs) |
500Wp
(250Wp x 2pcs) |
500Wp
(250Wp x 2pcs) |
1500Wp(250Wp x 6pcs) |
3000Wp
(250Wp x 12pcs) |
3000Wp
(250Wp x 12pcs |
4000Wp
(250Wp x 16pcs |
 |
