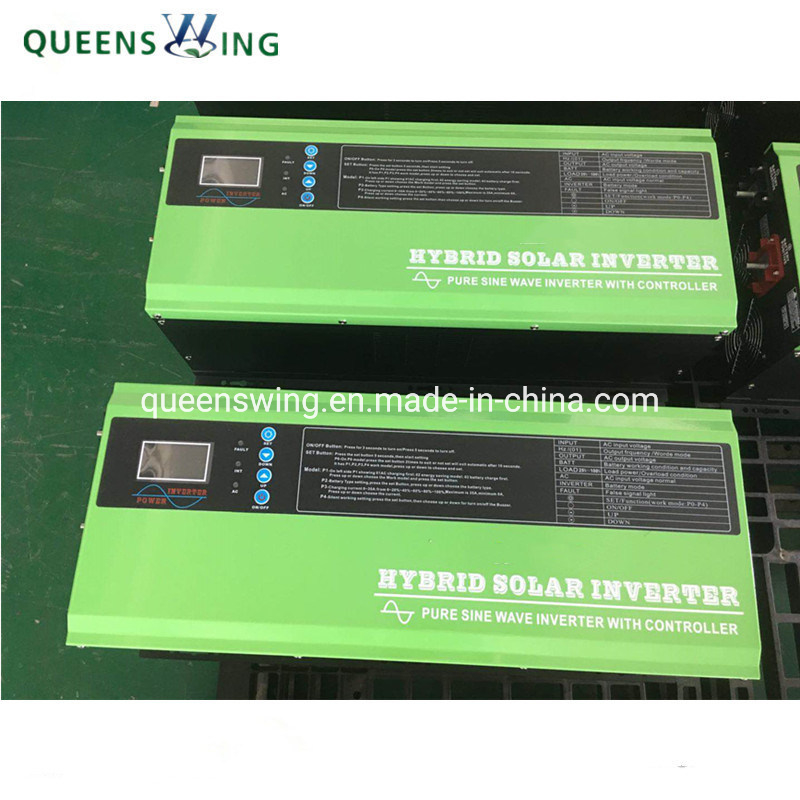

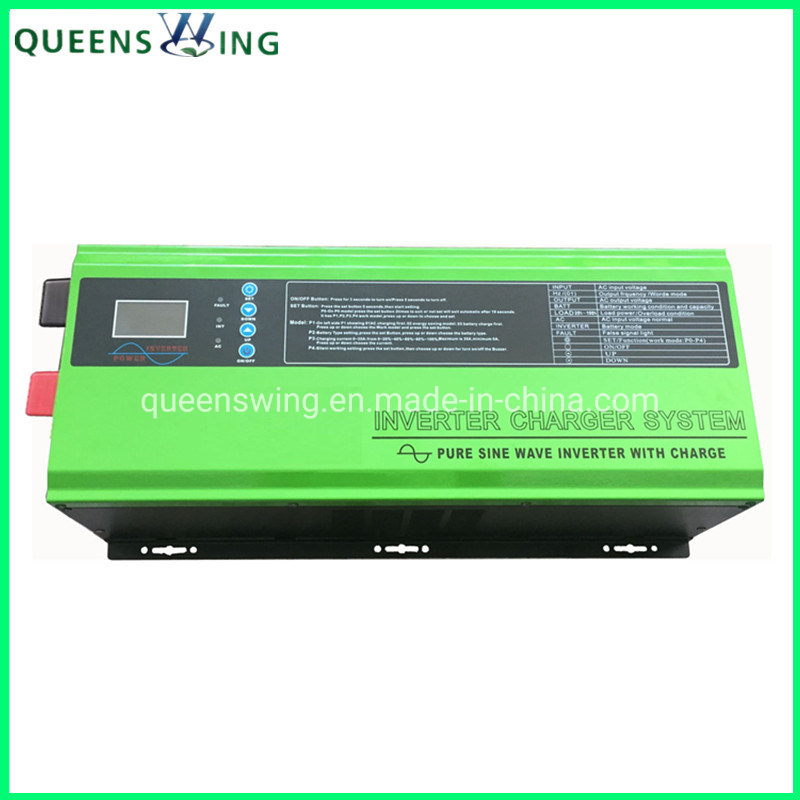

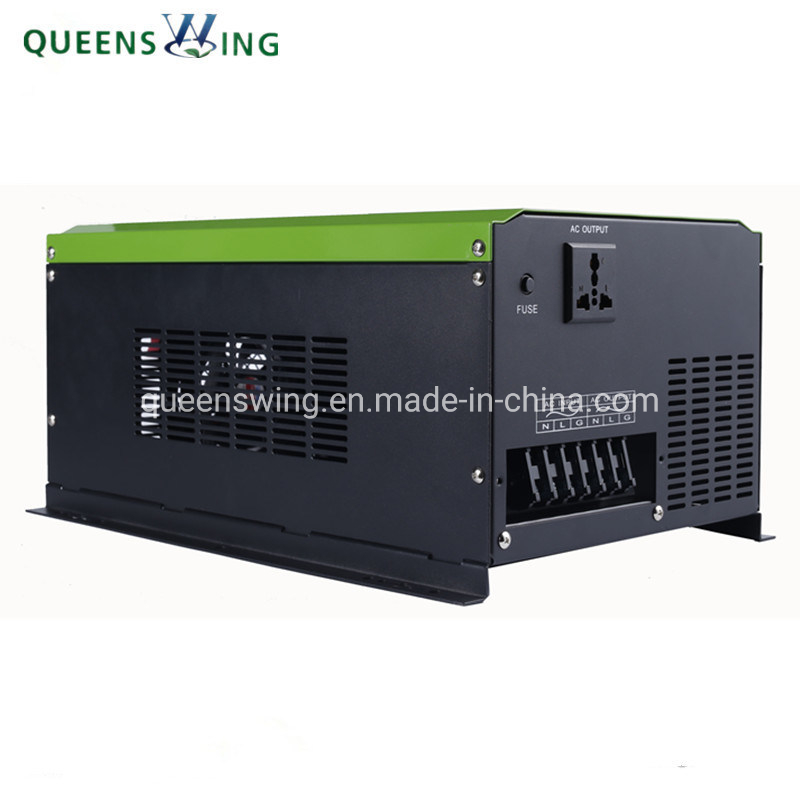

Product name : 7KVA/5KW 48V 120V/240V Split Phase Hybrid Solar Inverter with 50A MPPT Solar Controller
Item : QW-S7K50SP
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 7kVA/5kw 48V 120V/240V Split Phase Hybrid Solar Inverter with 50A MPPT Solar Controller

Features :
1. Big LCD display
2. Over load protection
3. Short circuit protection
4. Over temperature protection
5. Microprocessor Control Guarantees High Reliability
6. With Intelligent Big AC Charger
7. 5Step Progressive Charging
8. User Select 5 Types Battery
9. User Setting Battery Charge Current
10.Automatically And Swiftly Line To Battery Switchover
11.High Efficiency Using Line-interactive Circuit Technology
12.Easy To Install&Easy To Use
13.MPPT Solar charge controller built inside
14.High-powert,Multi-Stage Battery Charge

Application of solar energy system:
This is a pure sine wave inverter with AC big current charge,
LCD display offer users-configurable and clear data .
Easy-to-operate button operation such as battery type and
Battery or city power priority, battery voltage, load ,Input and
output voltage query. It can use for solar power system ,light,
radio, DVD, TV set, fans, freezer, computers, small hand-drill,
communication equipment and the other house appliance.












Specification:

Model

1000W

1500W

2000W

3000W

4000W

5000W

6000W

8000W

10000W

Input

Rated capacity

1000W

1500W

2000W

3000W

4000W

5000W

6000W

8000W

10000W

Peak power

3000W

45000W

6000W

9000W

12000W

15000W

18000W

24000W

30000W

Commercial Power range(VAC)

110VAC: 73 -- 137 120VAC: 80 -- 150
220VAC: 145 -- 275 230VAC: 152 -- 288 240VAC: 158 -- 300

Mains input frequency range

45--65HZ

Solar

MPPT / PWM Solar controller

30A

50A or 100A

Solar input

360W/720W/1440W

1200W/2400W/9600W

Battery

DC Voltage

12VDC / 24VDC / 48VDC

48VDC

48VDC / 96VDC

DC input voltage range

12VDC: 10.5 - 15VDC   24VDC: 21 - 30VDC  48VDC: 42 - 60VDC

Charger

AC Charging

10A - 40A (set by yourself)

Output

Capable of starting electric motor

0.5HP

1HP

1.5HP

2HP

3HP

AVR voltage range(VAC)

110/120/220/230/240± 10% (Auto-sensing)

Battery over voltage protection

12VDC: 16.7VDC  24VDC:33.4VDC  48VDC: 66.8VDC

Battery over voltage alarm

12VDC: 15VDC  24VDC:30VDC  48VDC: 60VDC

Battery under voltage protection

12VDC: 10.5VDC  24VDC:21VDC  48VDC: 42VDC

Battery low voltage protection

12VDC: 10VDC  24VDC:20VDC  48VDC: 40VDC

Transfer time

Typical: 5ms(Including detection time)

Temperature protection

≥85ºC alarm ≥90ºC machine shut off

overload

IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load

Waveform

Pure sine wave

Frequency

Commercial power supply; shared frequency with commercial inversion state: 60/50± 0.5

Output frequency range
(electric supply mode)

Tracking automatically

Temperature

Operation Temperature

0ºC -- 70ºC

Thermal method

Cooling fan in intelligent control≤ 42ºC fan rotates slowly to ≥45ºC fan rotates fast

Appearance

External Size(mm) (L*W*H)

510*325*215mm

645*325*215mm

765*320*250mm

Gross Size(mm) (L*W*H)

580*385*270mm

725*410*290mm

840*410*320mm

Net Weight(kg)

17

21

22

29

37

39

43

60

63

Gross weight(kg)

19

22

24

31

40

42

45

64

66
