Products > Low Frequency Power Inverter > Low Frequency Hybrid Solar inverter > 3kVA 3000watt 48VDC Home UPS Hybrid Solar MPPT 60A Power Inverters with Toroidal Transformer
Product name : 3kVA 3000watt 48VDC Home UPS Hybrid Solar MPPT 60A Power Inverters with Toroidal Transformer
Item : QW-SHM3000
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 3kVA 3000watt 48VDC Home UPS Hybrid Solar MPPT 60A Power Inverters with Toroidal Transformer















Product Paramenters
Model
SHM
500
SHM
1000
SHM
1500
SHM
2000
SHM
3000
SHM
4000
SHM
    5000
SHM
6000
AC Input
Voltage Range
100/110/120/127/220/230/240VAC(±25%)
Frequency Range
50/60Hz±2.5Hz


MPPT PV Input
Rated Voltage
12V/24VDC*1.5
24V/48VDC*1.5
48VDC*1.5
Max Input Voltage
150VDC
Charging Current
30A/40A(optional)
30A/40A/60A(optional)





Output
Rated Power
500W
1000W
1500W
2000W
3000W
4000W
5000W
6000W
Instantaneous Power
1500W
3000W
4500W
6000W
9000W
1200W
15000W
18000W
Wave Form
Pure Sine Wave
Battery Effciency
≥85%
AC Efficiency
≥95%
Output Voltage
100/110/120/127/220/230/240VAC(AC mode±10%, Battery mode±5%)
Output Frequency
50Hz/60Hz+0.5Hz(AC mode+2.5Hz)
Transfer time
28ms
USB Output
DC5V/1A*1+5V/2A*1(Optional)
Battery
Voltage
12V/24VDC
24V/48VDC
48VDC
Charging Current
1-20A(Adjustable)
2-40A(Adjustable)
LCD
Method
LCD+LED
Content
Input/Output Voltage,Battery Voltage,Battery Capacity,Load Capacity,Working mode,Frequency,PV status and specif cation,PV Cumulative power generation
Protection
Battery Reversal
Optional
Output Short Circuit
AC mode:Jump fuse, Inverter mode:Shutdown
Overload
If Overload 105%,Inverter wil alarm.lf Overload 130%, Inverter wilshutdownin10s,Once the inverter is off,It must be turned on manually
High AC Voltage
Turnoff AC, Turn to Inverter mode automatically
Low DC Voltage
Inverter shutdown automatically, Once the ACre cover, Inverter turn on and charge automatically
Temperature Over
Inverter will alarm and turnoff output but it will recover to normal state after cooling down
Environment
Humidity
15~95%(No condensation)
Temperature
-10ºC~50ºC
Altitude
≤3000m

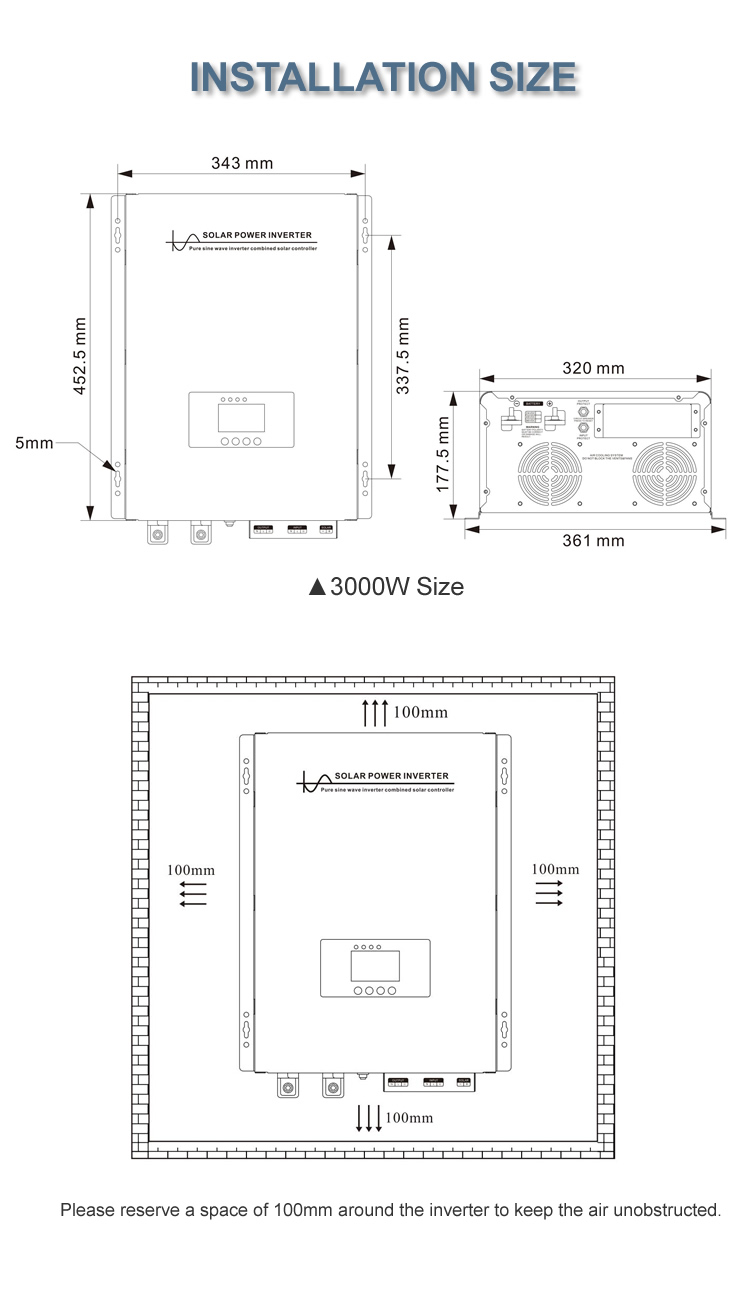

Product Dimension:D×W×H(mm)
450x280x135mm
486x361x175mm
553x411x175mm
Packing Dimension:DxW×H(mm)
505x374x178mm
571x422x236mm
641x470x236mm
Weight
N.W.(KGS/PC)
12.0
13.9
15.6
25.2
30.1
33.3
38.3
43
G.W.(KGS/PC)
14
15.9
17.6
28.8
35.5
36.8
41.9
46.6

About us

Guangzhou Queenswing Solar Energy Co. Ltd. Is a professional manufacturer and exporter of solar products including power inverter, solar charge controller, solar panel and solar battery in China. To provide high-quality product and considerate service is always our basic policy. We believe high quality creates business and progress is from improvement.

Main products
Pure sine wave power inverter
Modified sine wave power inverter
UPS power inverter with charger
Car power inverter
Solar charge controller
Battery Charger
Solar battery
Solar Lighting Kits
Solar Panels

Our power inverter and solar products are exported to most global coutries and get good reputation because of our favorable quality and stable performance.

Payment Terms
T/T, Western Union, Money Gram, Western Union and Cash.
Production arranged after receipt of payment.

Lead Time
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
