Hybrid Solar Inverter
Hybrid Solar Inverter with inbuilt MPPT Controller
|
Product name : 100W Mono Solar Panel
Item : QW-M100W
 |
| Details: | ||||||||||||||||||||||||||||||||||||||||

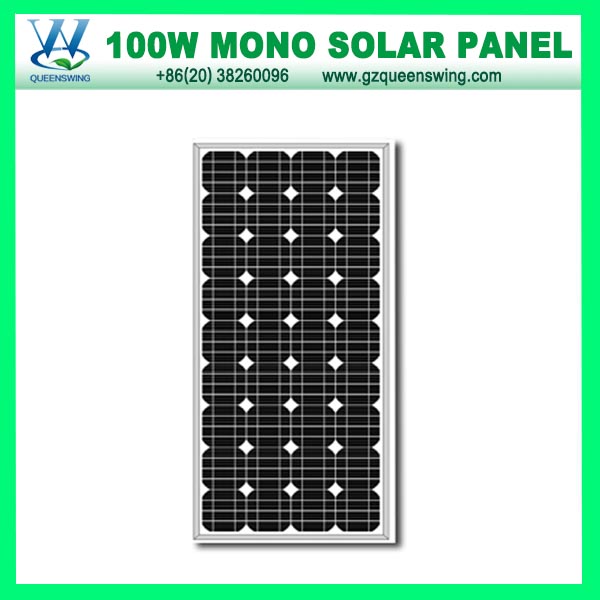

100W mono solar panel
Renewable energy is energy that comes from natural sources that are almost always available, such as sunlight, wind, rain, tides, and even heat. Since creating environmentally-friendly energy solutions is crucial, the renewable energy industry has become a key business that will only increase in importance in future years and decades. Solar energy is often regarded as the most efficient renewable energy source for generating electricity. Technical data: Nominal peak power(Pmax): 100WP Maximum power voltage(Vmp): 18.8V Maximum power current(Imp): 5.32A Short-circuit current(Isc): 5.65A Open circuit voltage(Voc): 23.19V Optimized cell efficiency(η ): 18.40% Number of cells and type of connection: 36, serial connection Dimensions: Length: 1200mm, Width: 550mm, Height: 35mm Net weight: 8.2kgs/PC Gross weight: 18kgs/ctn(2pcs/ctn) Container loading: 544PCS/20'GP 2PCS/CTN Guaranteed Power Output(Warranted Tolerance: ± 5%): 15 year: 90% of its nominal power rating, 25 year: 80% of its nominal power rating Impact Resistance: Can bear the force that is generated by one 227g Steel ball fall down from 1m height Warranty period: 10 years: Materials and workmanship defects Cells: Monocrystalline silicon photovoltaic cell
|
||||||||||||||||||||||||||||||||||||||||
