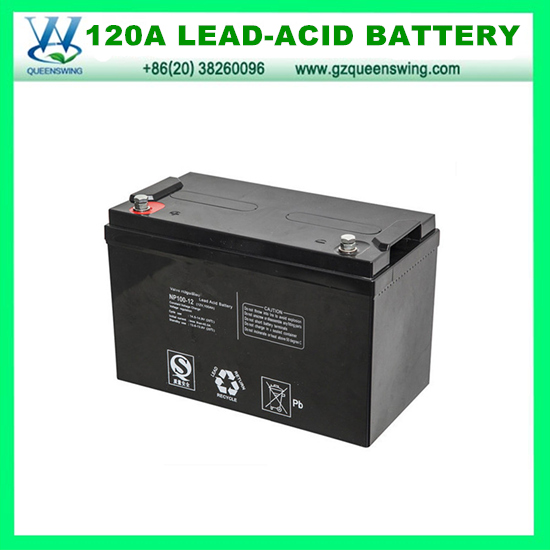

VRLA deep syscle storage battery 12V 120A
QueensWing Battery:
Vrla battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A
Gel battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A
Main Characteristic:
1. Maintenance-Free Operation
Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of Prostar batteries, no need to check the specific gravity of the electrolyte or add water.
2. Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
3. Long Service Life
A unique corrosion-resistant grid alloy ensures Prostar batteries have long service life.
4. Low Self Discharge
Using high purity raw materials ensures Prostar batteries have less self-discharge.
5. Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
Applied Scope:
1)Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers, Radio and Broadcasting Stations.
2)Motivity Field: Robots, Electric Toys, Electric Tools&Portable Vacuum Cleaners.
3)Solar&Wind Power Generation Systems
4)EPS&UPS Systems
Specifications:
Nominal Voltage |
12V |
Nominal Capacity (10 hour rate) |
120Ah |
Capacity
25 o C
(77°F) |
20 hour rate (6.66A) |
133.2Ah |
5 hour rate (21.9A) |
109.5Ah |
1 hour rate (79.8A) |
79.8Ah |
Internal Resistance |
Full Charged Battery 25 o C |
≤5.0mΩ |
Capacity affected by Temperature
(10 hour ) |
40 o C
(104°F) |
102% |
25 o C
(77°F) |
100% |
0 o C
(32°F) |
85% |
-15 o C
(5°F) |
65% |
Self-Discharge
25 o C
(77°F) Capacity |
after 3 month storage |
90% |
after 6 month storage |
80% |
after 12 month storage |
62% |
Charge (Constant Voltage) 25 o C
(77°F) |
Float |
Initial Charging Current Less than24.0A
Voltage 13.6-13.8V |
Cycle |
Initial Charging Current Less than24.0A
Voltage 14.4-14.9V |
Battery Dimensions |
Length |
407mm |
Width |
174mm |
Height |
210mm |
Total Height |
233mm |
Box Dimensions |
Length |
422mm |
Width |
188mm |
Height |
290mm |
Quantity Per Box |
1 PC per box |
Net weight Per Cell |
34.0kg±400g |
Net weight Per Box |
34.0kg |
Gross Weight |
34.5kg |
