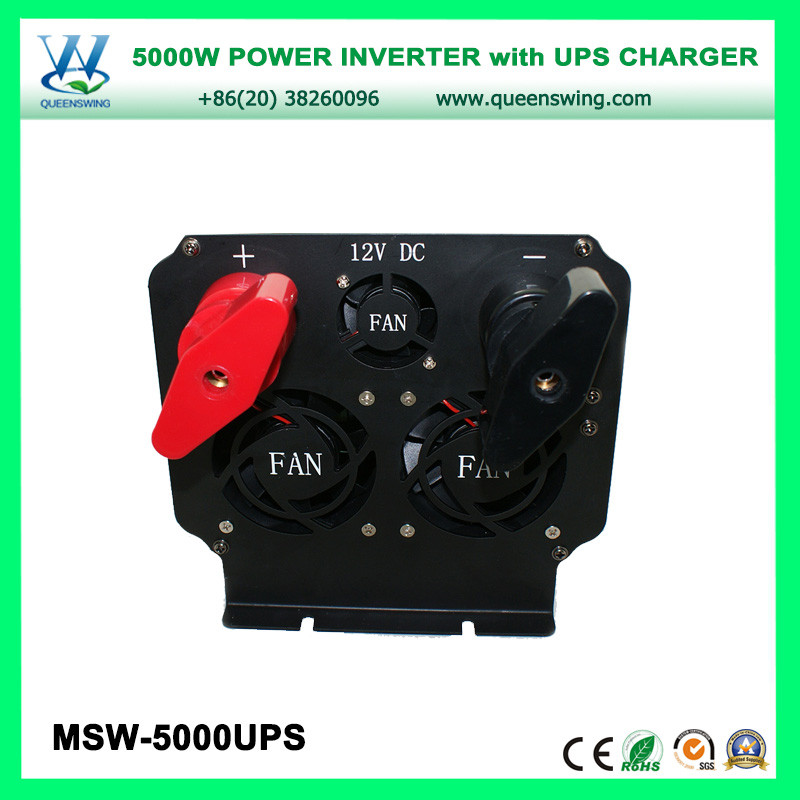

Inverter is a power equipment that can change DC(storage battery, solar cell, wind dynamo etc.) to AC.
This inverter use high frequency power conversion technology and the ferrite transformer instead of the old bulky silicon steel transformer, that is why power inverter is lighter, smaller than other similar inverter.
-
CE & Rohs & SGS was approved.
-

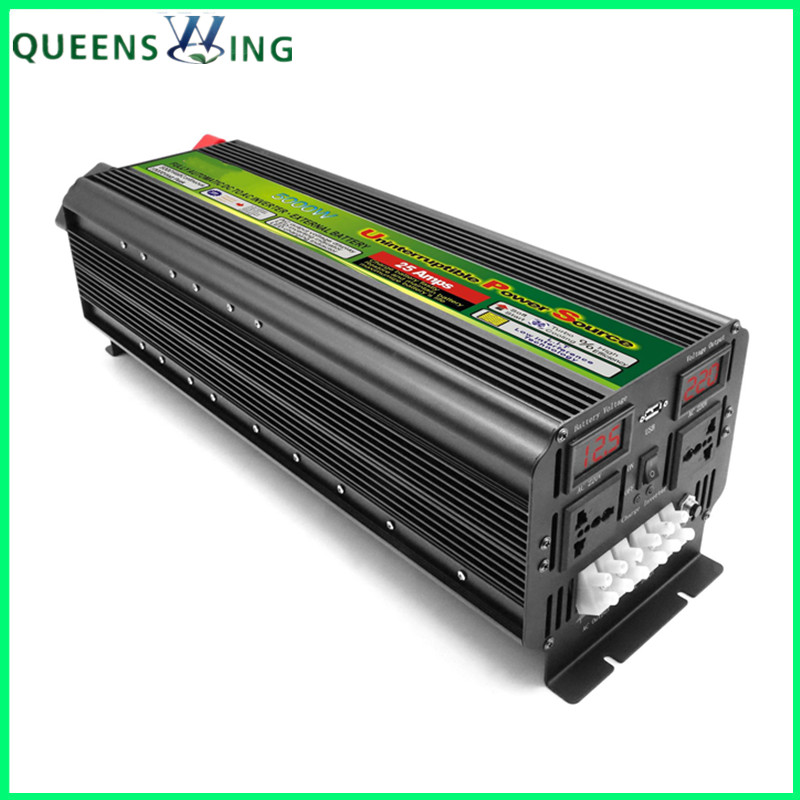

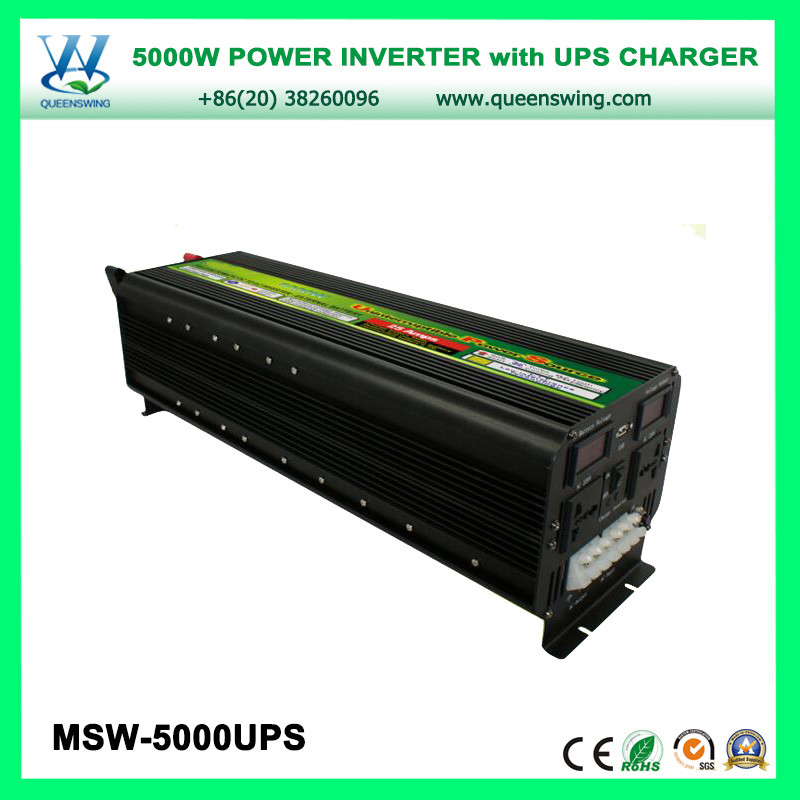

Upgrade big aluminium housing case and intelligent cooling fans, improve cooling ability, save enery and lengten the use life.
-

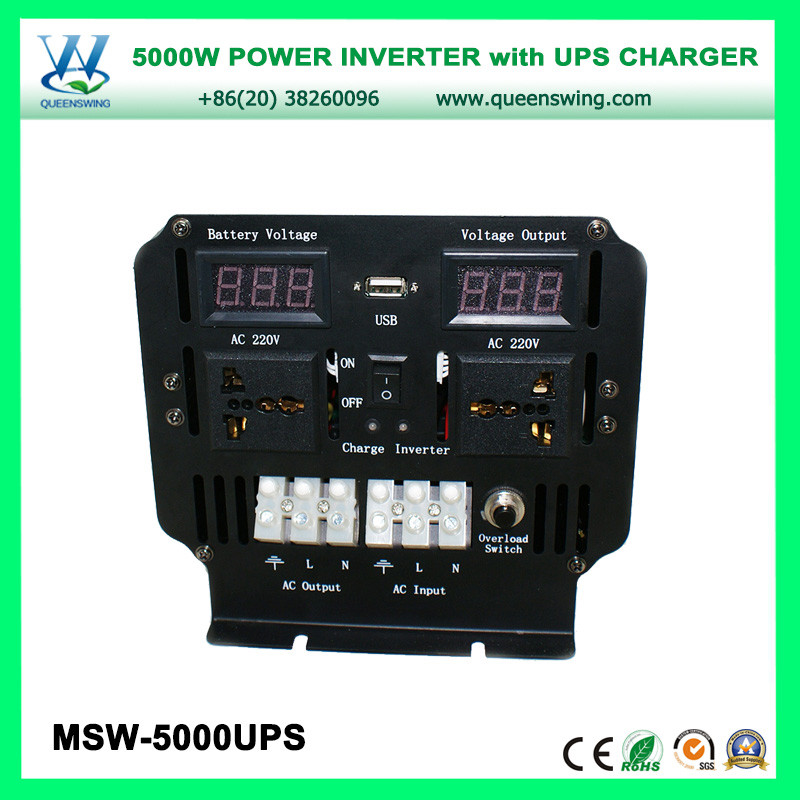

Voltage display: digital display
-
Maximum 5000W continuous output and 10000W surge power.
-
UPS(Uninterruptible Power Supply)with Charging function: When commercial power is on, inverter use commercial power; when commercial power is off, inverter will be transfer to use battery power and charging automatically, and the transfer time is less 10mS.
Technical Parameter:
Model No. |
MSW-5000UPS |
Rated power |
5000W |
Peak power |
10000W |
Transfer efficiency |
≥94% |
Input voltage |
12Vdc |
24Vdc |
Input voltage range |
10-15Vdc |
20-30Vdc |
Output voltage |
110Vac |
220Vac |
Output voltage range |
110Vac±5% or 220Vac±5% |
Voltage display |
digital display |
Frequency |
50Hz±2% or 60Hz±2% |
No load current |
<1A |
<0.85A |
Waveform |
Modified Sine Wave |
Low voltage alarm(DC) |
10.5Vdc |
21Vdc |
Low voltage protection(DC) |
10Vdc |
20Vdc |
Over voltage protection(DC) |
15.5Vdc |
31Vdc |
USB port |
yes |
UPS transfer |
Inverter use city power first, when city power cut off suddently,
inverter transfer to use battery power auto, and the transfer time is ≤10mS |
Charge current |
25A |
10A |
Over-load Protection |
5000W-5100W |
Cooling Way |
Intelligent Cooling Fans |
Fan Start Temperature |
≥40±5℃ |
Temperature Protection |
70±5℃ |
Packaged |
1*pair battery cable(red & black)
1*charge cable
1*english user manual
1*neutral packing box |
Dimension |
Inverter: 576*180*162mm/10kg
Carton: 550*180*170mm/11kg/1pc |
Certifications |
CE、Rohs |
Protect functions:
1. Over load protection
2. Over current protection
3. Over voltage protection
4. Low voltage protection
5. Surge protection
6. Short circuit protection
7. High temperature protection
8. Reverse connection protection
9. Internal fuse protection
10. Leakage Protection
Applicable for: ( Solar/Wind/Home System )
1. Travel set equipment
2. Industrial equipment
3. Office equipment
4. Kitchen equipment
5. Household electrical equipment
6. Power tools
