Products > Hybrid Solar Inverter > Hybrid Solar Inverter with inbuilt PWM Controller > 5KVA 48V Hybrid Solar Inverter with PWM 50A Controller

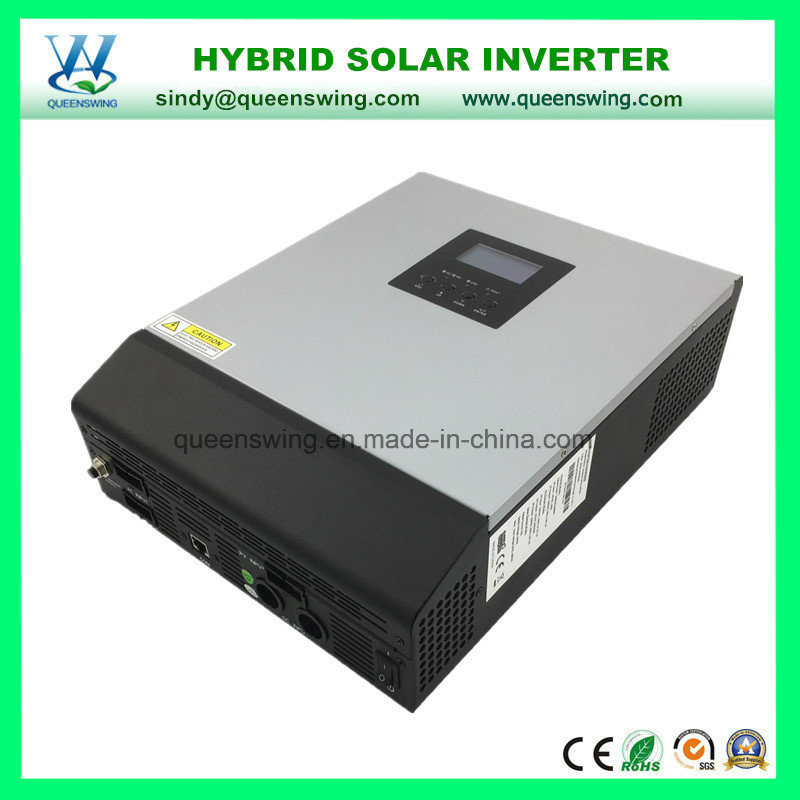

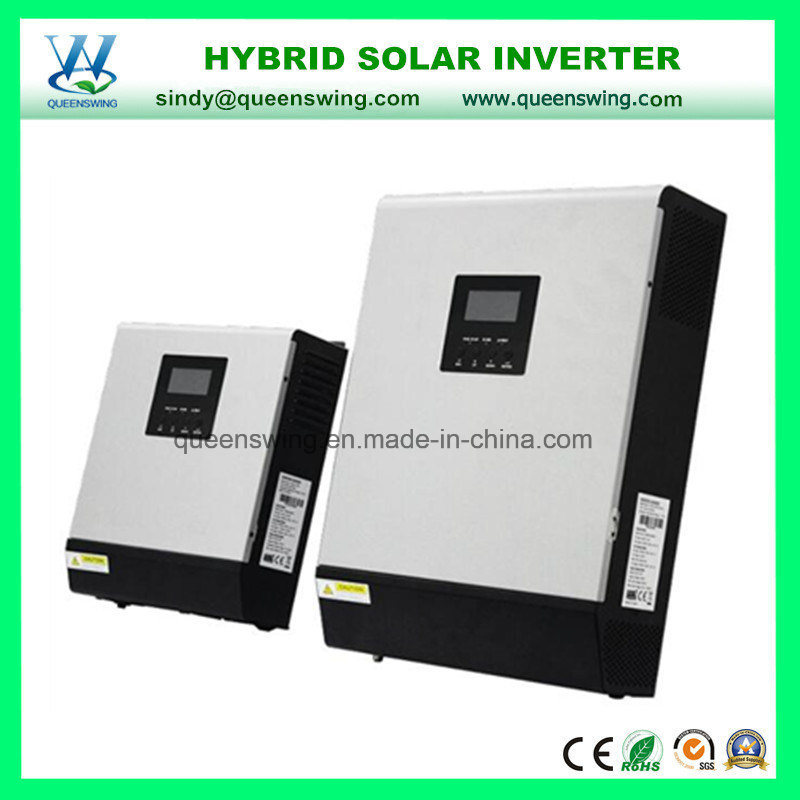

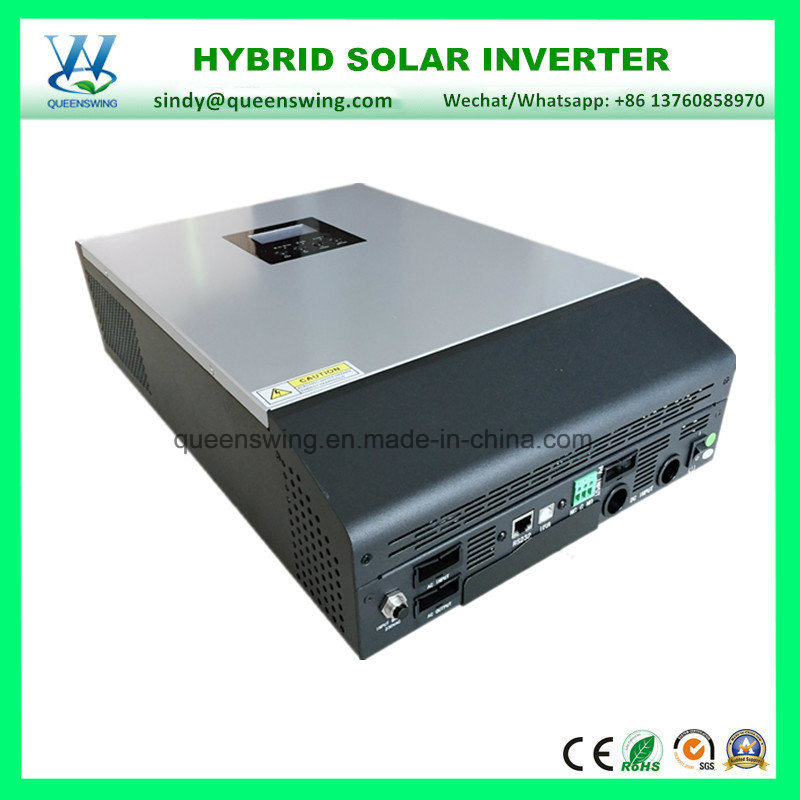

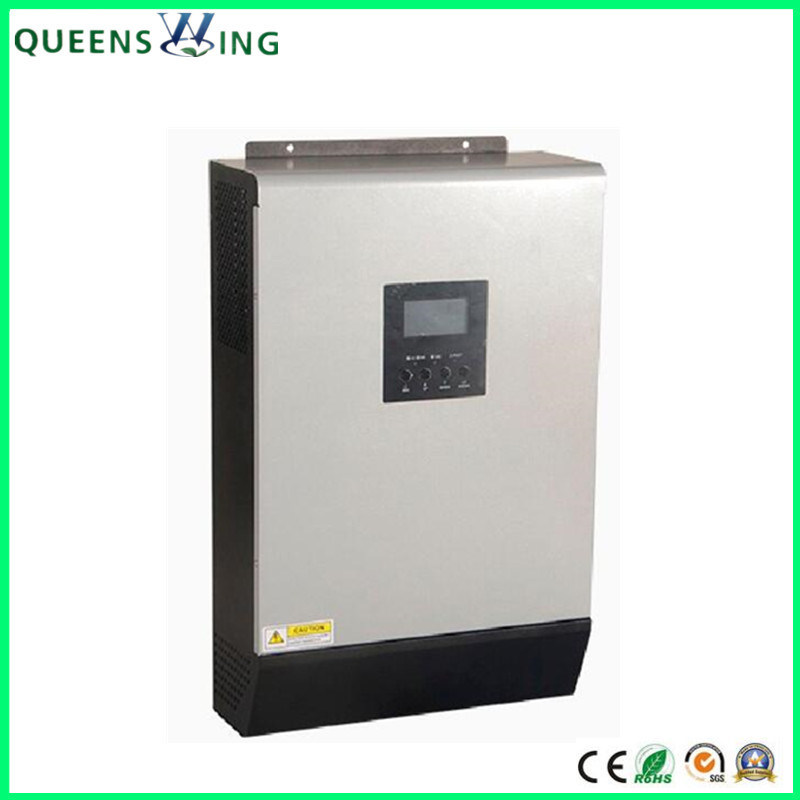

Product name : 5KVA 48V Hybrid Solar Inverter with PWM 50A Controller
Item : QW-5KVA4850
Price : Negotiated
 Enlarge Image                   Back
←[Previous Product]


Details:

5KVA 48V Pure Sine Wave Hybrid Solar Power Inverter with PWM 50A Solar Charge Controller

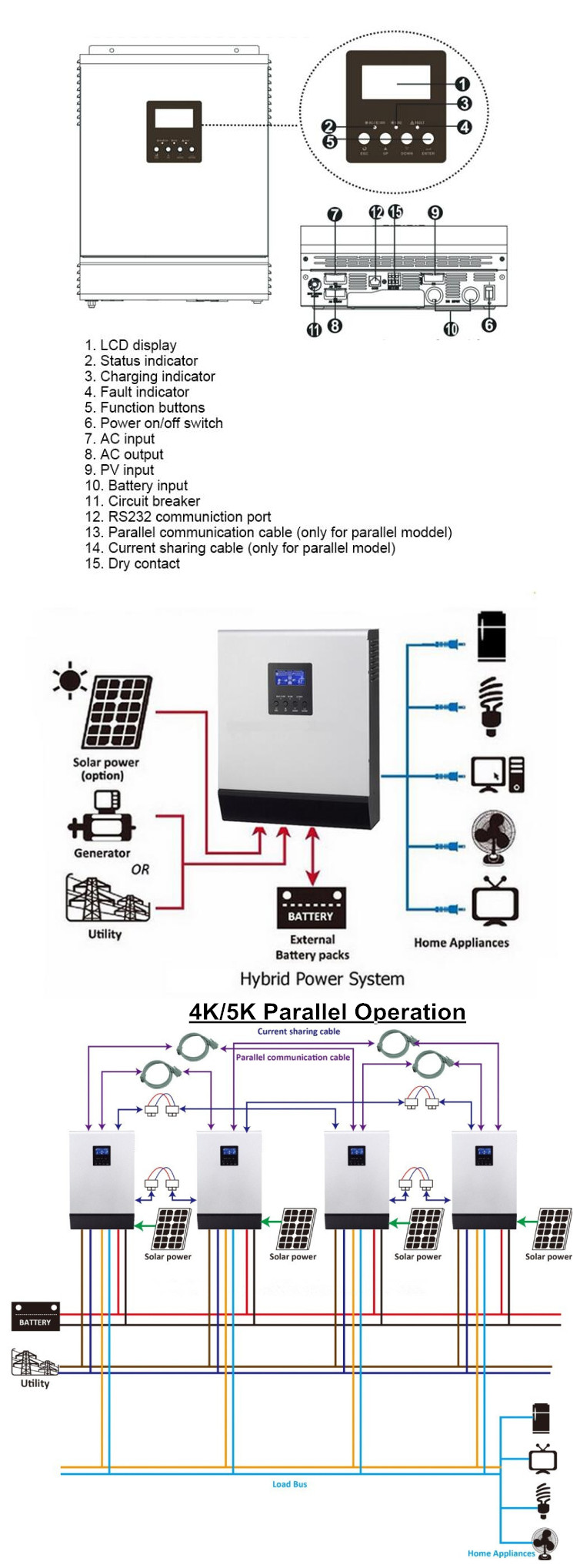

This is a multifunction inverter/charger, combining functions of inverter, solar charger and battery charger to offer
uninterrupted power support with portable size. Its comprehensive LCD display offers user-configurable and easy-
accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage
based on different applications.

1-5KVA HYBRID SOLAR INVERTER BUILT IN PWM SOLAR CHARGE CONTROLLER
Model 1K-12V 2K-24V 3K-24V 4K-48V 5K-48V
Rated Power 1000VA/800W 2000VA/1600W 3000VA/2400W 4000VA/3200W 5000VA/4000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances)
Frequency Range 50 / 60Hz (optional)
OUTPUT
AC Voltage Regulation(Batt. Mode) 230 VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency(Peak) 93%
Transfer Time 10 ms (For Personal Computer)
20 ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 12 VDC 24 VDC 24 VDC 48 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 27 VDC 54 VDC 54 VDC
Overcharge Protection 15 VDC 30 VDC 30 VDC 60 VDC 60 VDC
Maximum Charge Current 10A/20A 20A or 30A 20A or 30A 60A 60A
SOLAR CHARGER(OPTION)
Charging Current 50A
Maximum PV Array Open Circuit Voltage 40 VDC 60 VDC 60 VDC 105 VDC 105 VDC
Standby Power Consumption 1W 2W 2W 2W 2W
PHYSICAL

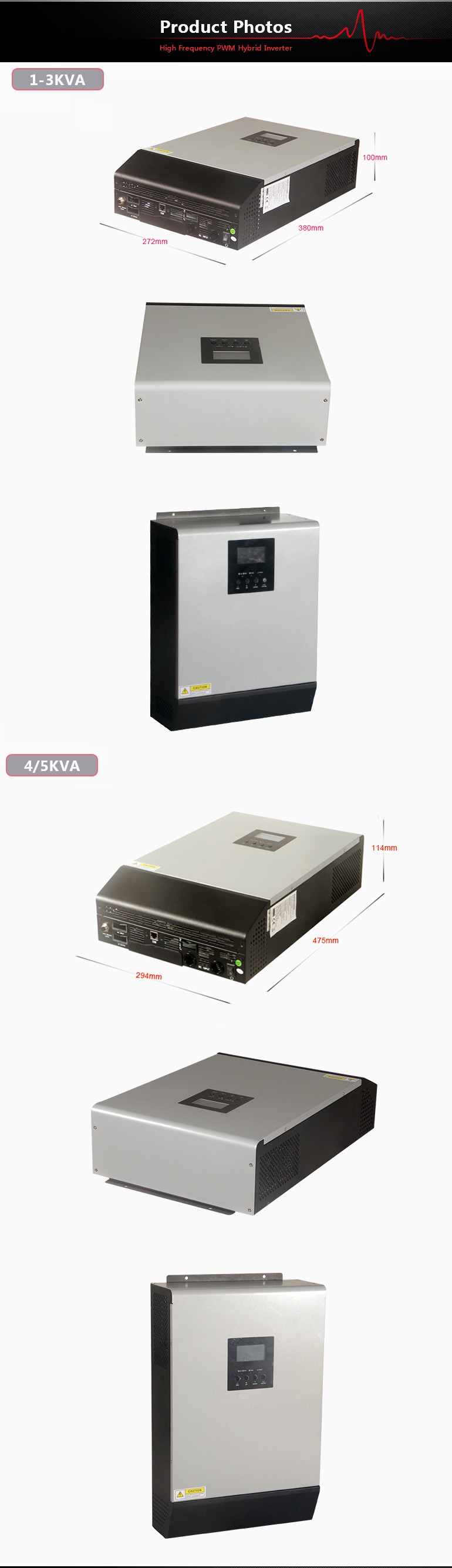

Dimension, D x W x H(mm) 420x350x180 420x350x180 420x350x180 540x400x210 540x400x210
Gross Weight(kg) 6.5 8.35 8.85 11.0 12.0
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0ºC - 55°C
Storage Temperature -15ºC - 60°C
Product specifications are subject to change without further notice
