Feature:
- The whole process is executed by CPU intelligent program.
- Pure sine wave output: Relative to the square wave or modified sine wave ( Step wave), it have a stronger effect in loading or load capacity.
- Available with capacitive load, inductive load and any other type of general-purpose AC load, if it runs a refrigerator, television or radio equipment, there would be no interference and noise and will not affect the load equipment performance and life.
- High stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse and improved protection, stability of the system.
- Digital intelligent control: The core device is controlled by a powerful micro-controller, making the external circuit structure being simple, control being flexible and control strategy being powerful, thus ensuring excellent performance and stability
- Maximum 1000W continuous output and 2000W surge power.
Technical Parameter:
Model No. |
PSW-1000 |
Rated Power |
1000W |
Peak Power |
2000W |
Transfer efficiency |
≥90% |
Circuit Topology |
push-pull type;
the whole process is executed by CPU intelligent program |
Waveform |
Pure Sine Wave |
Waveform Distortion |
≤5%(linear load) |
No Load Current |
≦0.5A |
Input Voltage |
12V or 24V DC (option) |
Output Voltage |
110V, 120V, 230V or 220V DC (option) |
Input Voltage Range |
11V~15VDC or 21V~29VDC |
Low Voltage Alarm |
11VDC±0.5V or 21VDC±0.5V |
Over Voltage Cut-off |
≥15VDC or ≥29VDC |
Output Voltage |
110VAC±5% |
Over-load Protection |
1000W-1100W |
Cooling Way |
Intelligent Cooling Fans |
Fan Start Temperature |
≥40±5℃ |
Temperature Protection |
70±5℃ |
Frequency |
50Hz or 60Hz ± 0.5%(option) |
Protection |
Input low-voltage, Input high-voltage, Over-Load, Short-circuit, Over-temperature and Reverse connection protection. |
Green LED indicator |
Lighting(working);
Flash slow(lack voltage);
Flash fast(fault occur and the unit is in protection situation) |
Packaged |

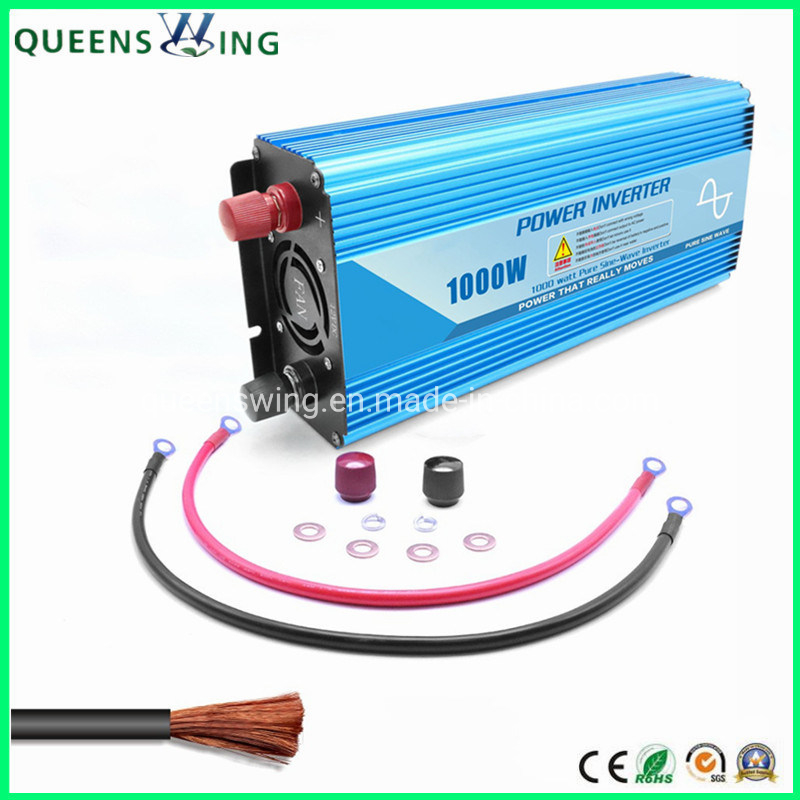

1 pair battery cable(red & black)
1 bag fuses
1 english user manual
1 neutral packing box |
Dimension |
Inverter: 240*145*53mm/2.5kg
Carton: 240*145*53mm/11.5kg/4pcs |
Certifications |
CE、Rohs |
Application:
1. In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2.Industry equipments series: solar energy, wind power, gas discharge lamp and etc.
3.Office area: Computer, printer, copier, scanner, digital camera and etc.
4. Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.
5.House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6.Power tool series: electric saw, drilling machine, punching machines,air compressor ect.
Testing Video: https://youtu.be/3wGlA0wd43k
|
