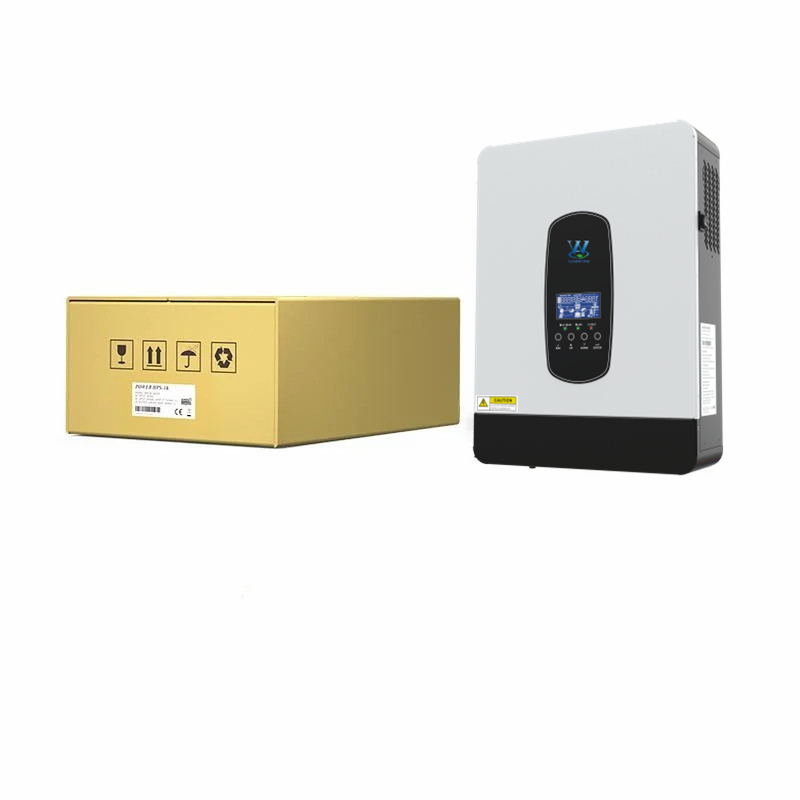

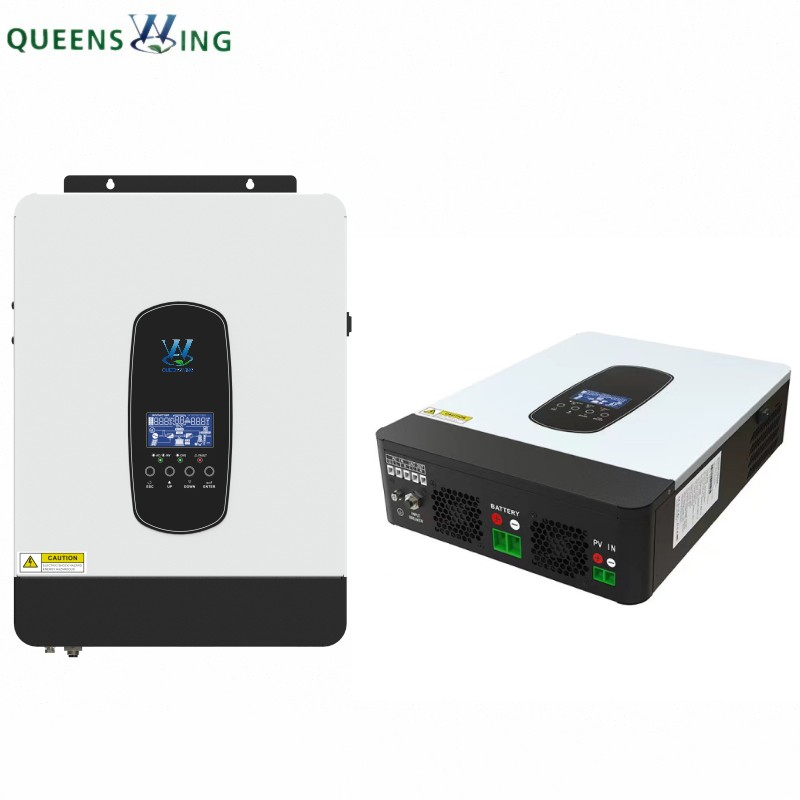

Product name : 3.2KVA/3KW 24VDC 230VAC Pure Sine Wave Hybrid 80A MPPT Solar Power Inverter with 3000W PV input 55-450VDC
Item : QW-SP-3.2K24
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
3.2KVA/3KW 24VDC 230VAC Pure Sine Wave Hybrid 80A MPPT Solar Power Inverter with 3000W PV input 55-450VDC(QW-SP-3.2K24)

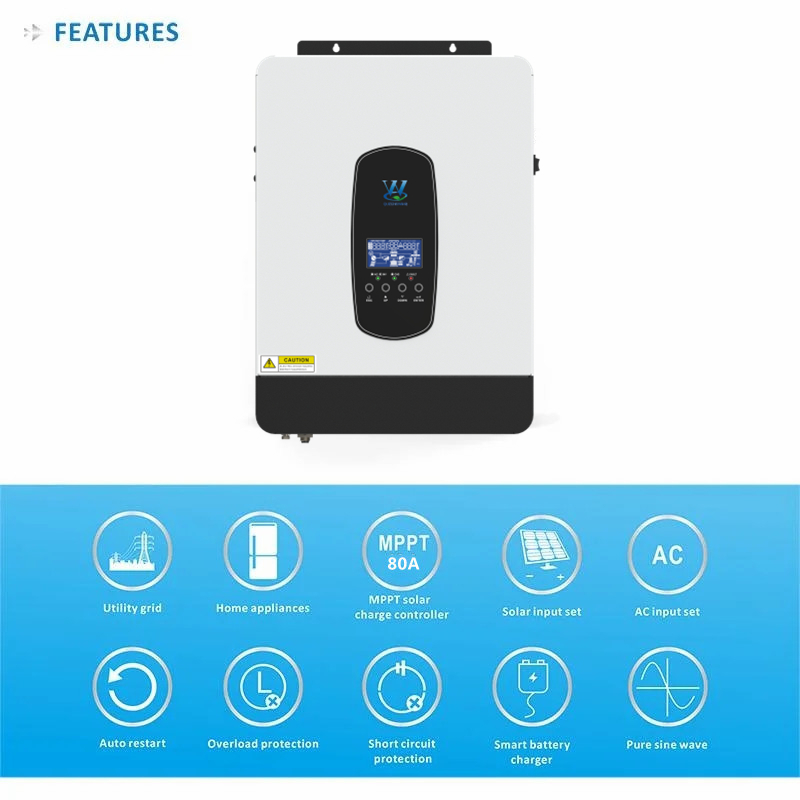

Product Features
• Pure sine wave inverter

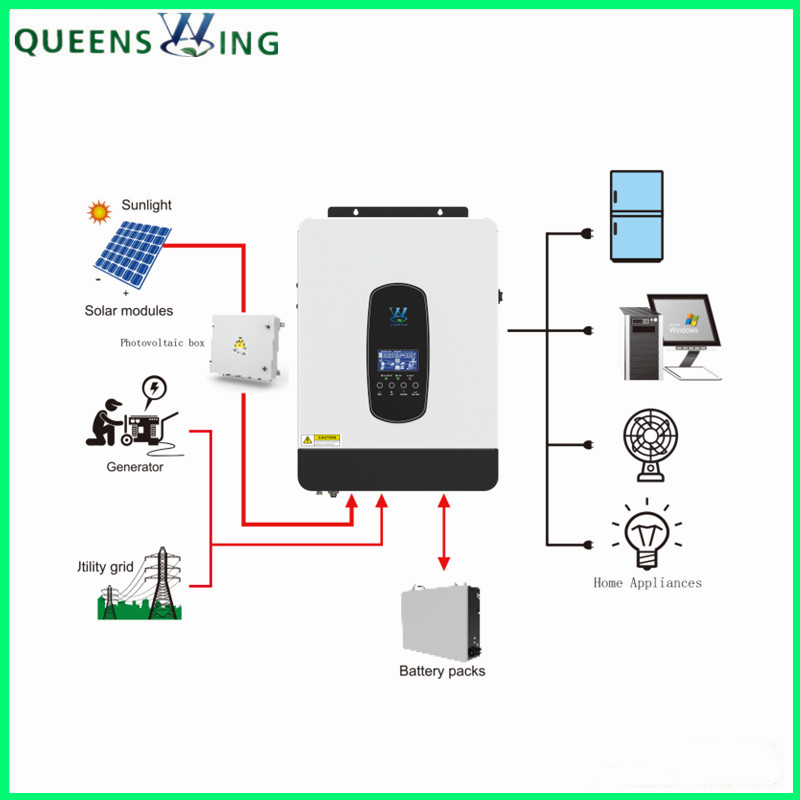

• Programmable supply priority for PV, Battery or Grid
• High PV input voltage range(55~450VDC)
• Built-in 80A MPPT solar charge
• Max. PV input power 3000W
• Compatibe with lithium-ion battery
• Smart battery charge design to optimize battery life
• Overload,high temperature,inverter output short circuit protection
• Cold start function
• Intelligent fan speed adjustment
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering

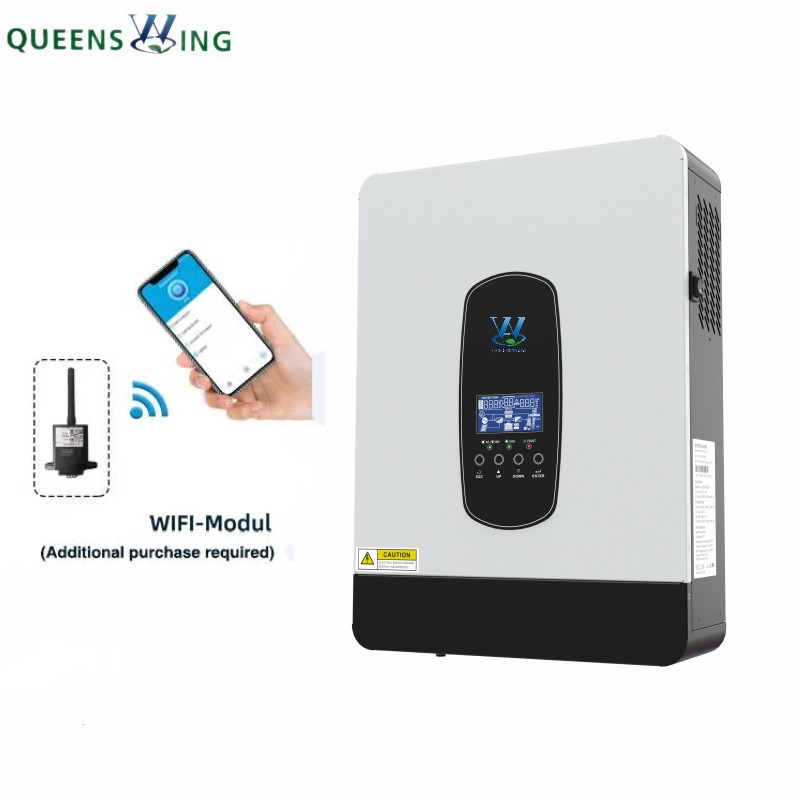

• WIFI&GPRS available for IOS and android(optional)

Product Overview











Technical Data

2.2KVA/1.8KW 12V 80A MPPT Hybrid Solar UPS Inverter with 2000W 450V PV Input(workable with Lithium Battery)

Model

2.2K-12V

3.2K-24V

Rated Power

2200VA/1800W

3200VA/3000W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances)

Frequency Range

50 / 60Hz (optional)

OUTPUT

AC Voltage Regulation(Batt. Mode)

230 VAC ± 5%

Surge Power

4400VA

6400VA

Transfer Time

10 ms (For Personal Computer)
20 ms (For Home Appliances)

Waveform

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

12 VDC

24 VDC

Floating Charge Voltage

13.5 VDC

27 VDC

Overcharge Protection

15.5 VDC

31 VDC

Maximum AC Charge Current

60A

60A

SOLAR CHARGER

Maximum PV Array Power

2000W

3000W

MPPT Range @ Operating Voltage

55-450VDC

55-450VDC

Maximum PV Array Open Circuit Voltage

450VDC

450VDC

Maximum Charging Current

80A

80A

Maximum Efficiency

98%

98%

PHYSICAL

Dimension, D x W x H(mm)

410x290x100mm

410x290x100mm

Gross Weight(kg)

6

6.5

Communication Interface

RS232(Standard)
GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10ºC - 55°C

Storage Temperature

-15ºC - 60°C

Product specifications are subject to change without further notice

MODEL

2.2K-12V

3.2K-24V

Inverter Power

1800W

3000W

Pmax.generated from solar charger

80Amp, 2000W

80Amp,3000W

Best Panel Configuration

2000Wp
(250Wp x 8pcs in serial)

3000Wp
(250Wp x 12pcs in serial)
