Products > Hybrid Solar Inverter > Hybrid Solar Inverter with inbuilt MPPT Controller > 3.5KW 24V 100A MPPT Hybrid Solar Power Inverter with PV Input 4000W 30-500VDC

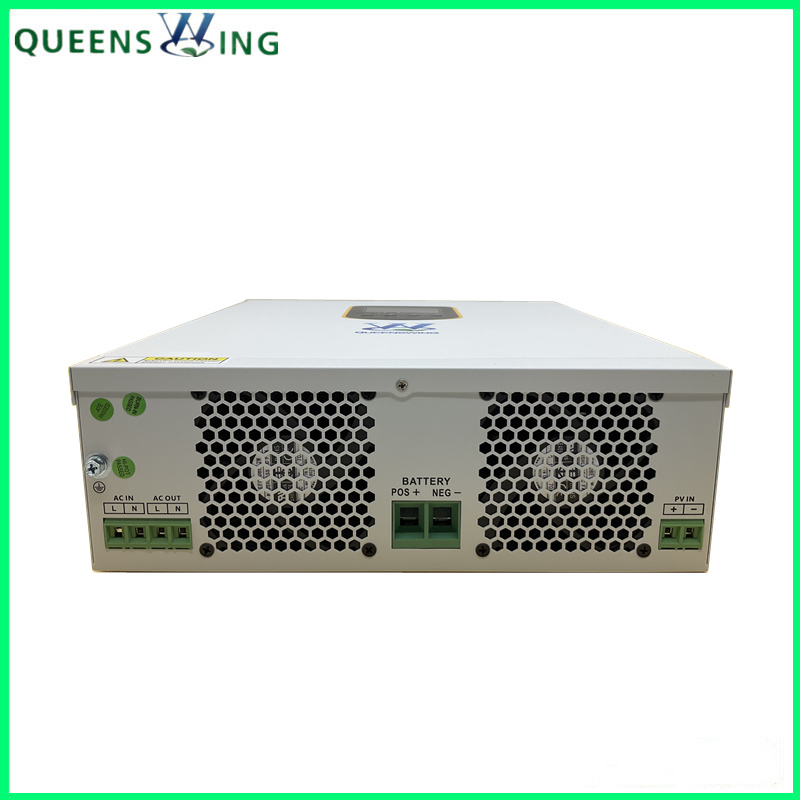

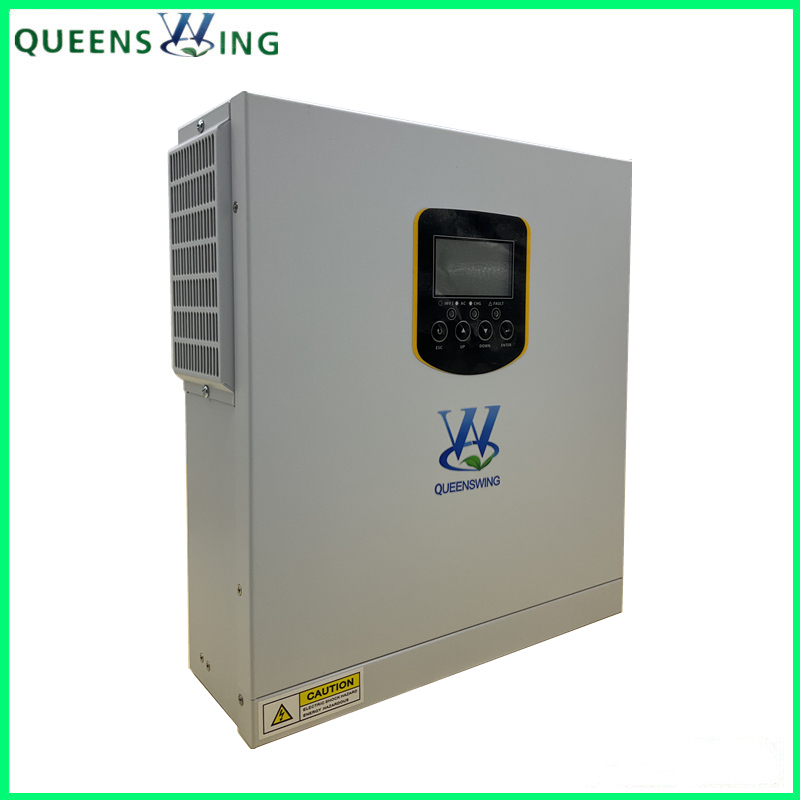

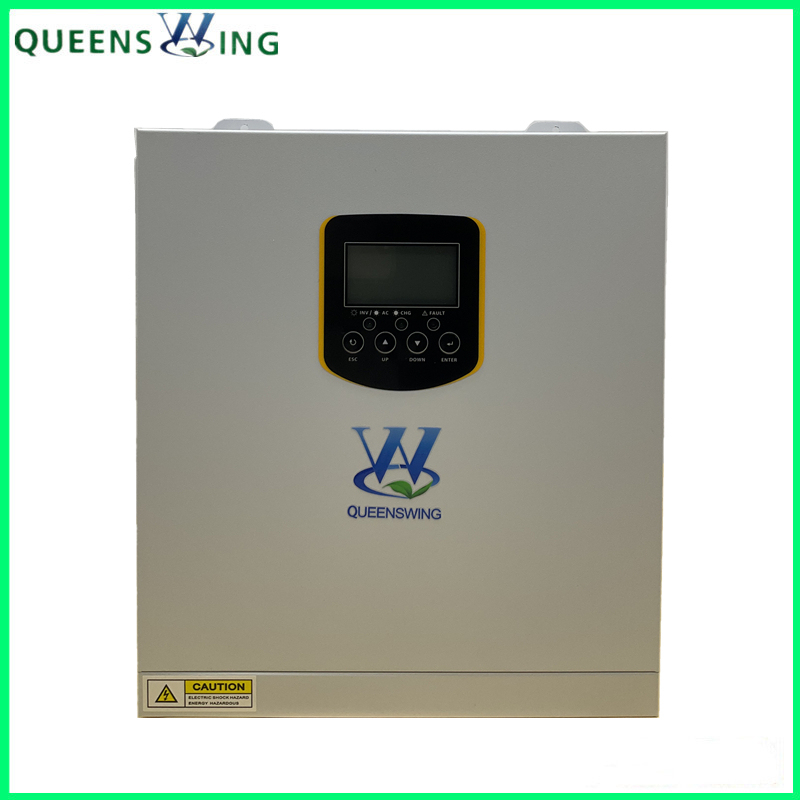

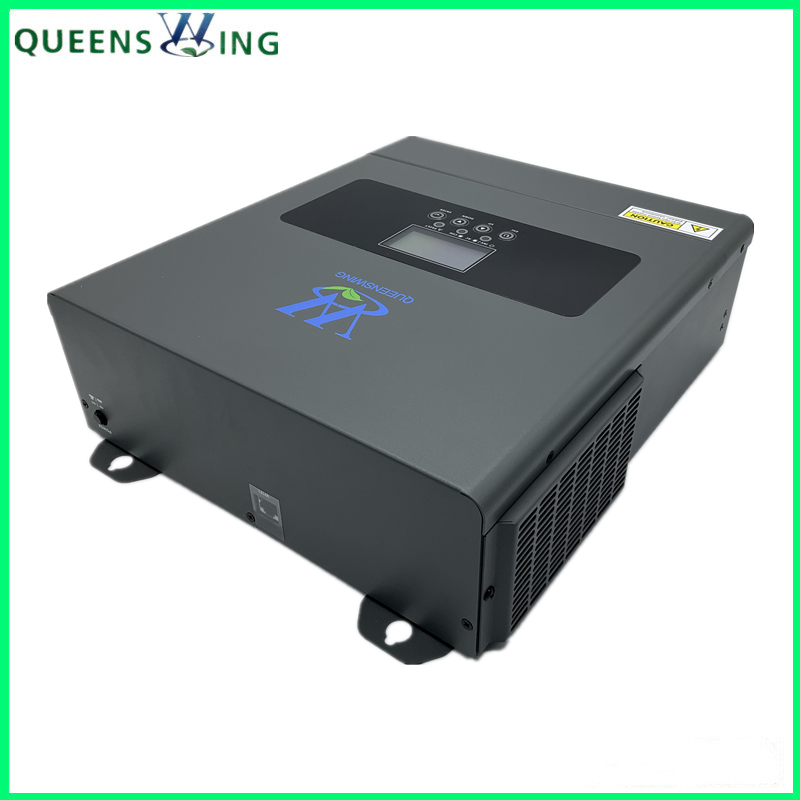

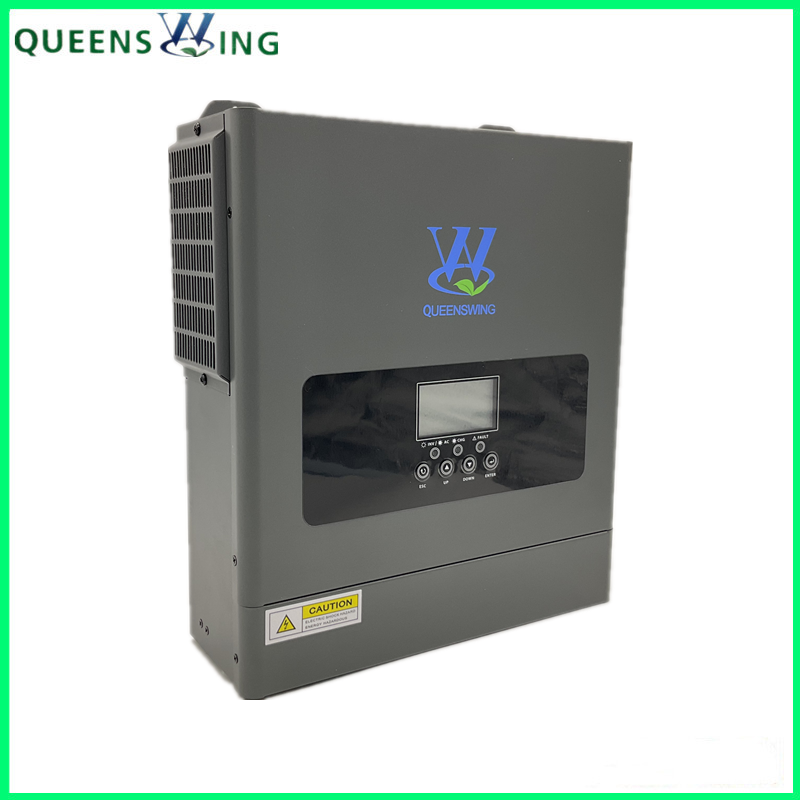

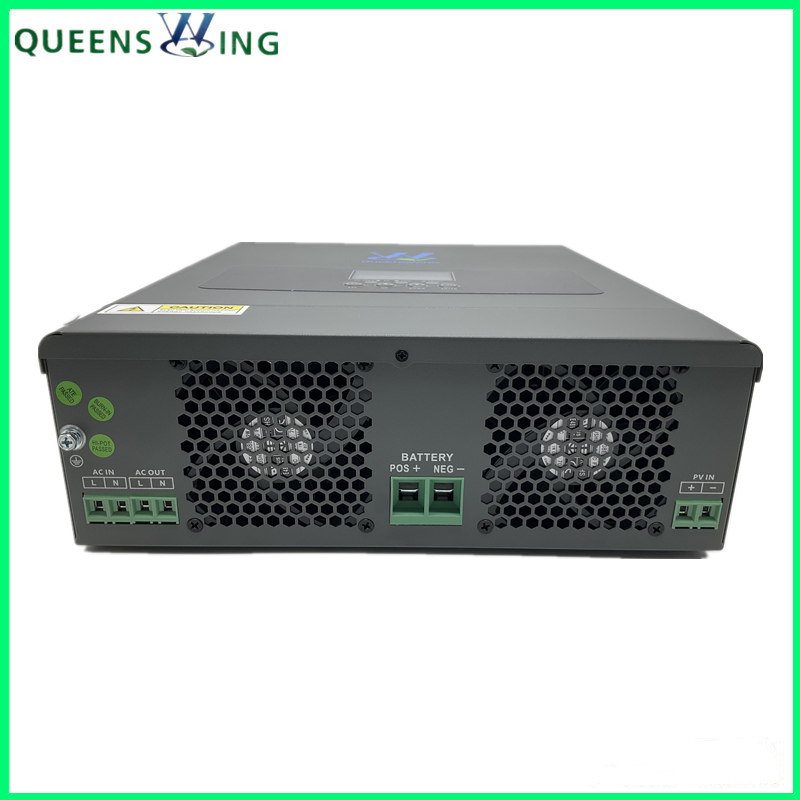

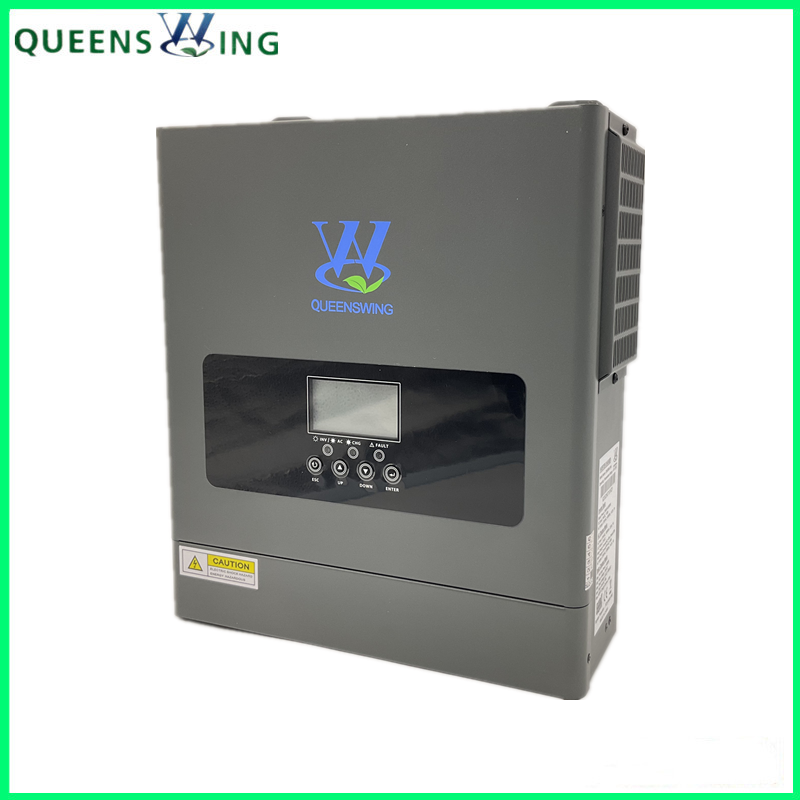

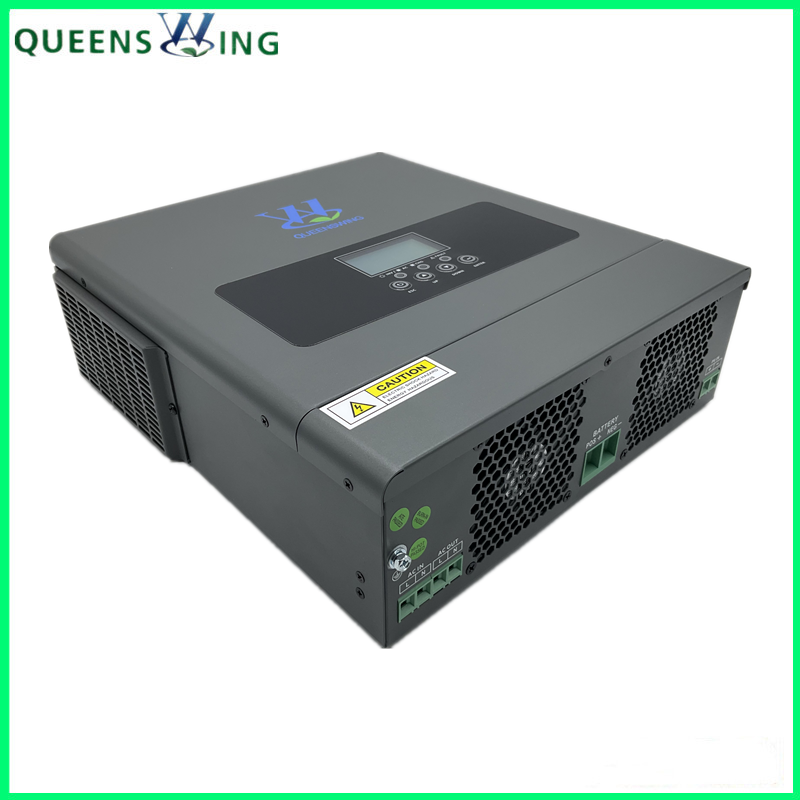

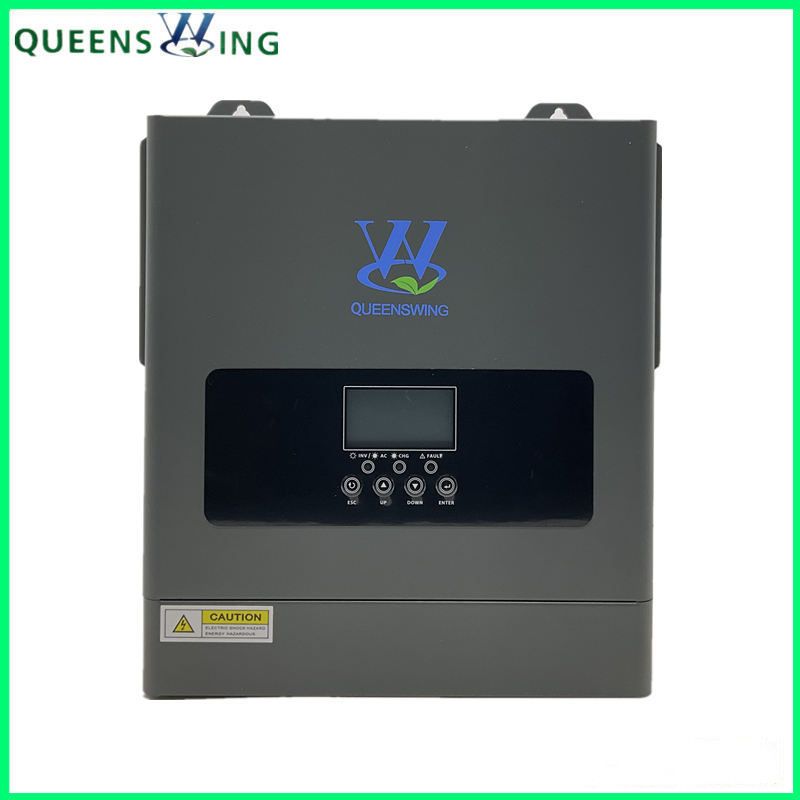

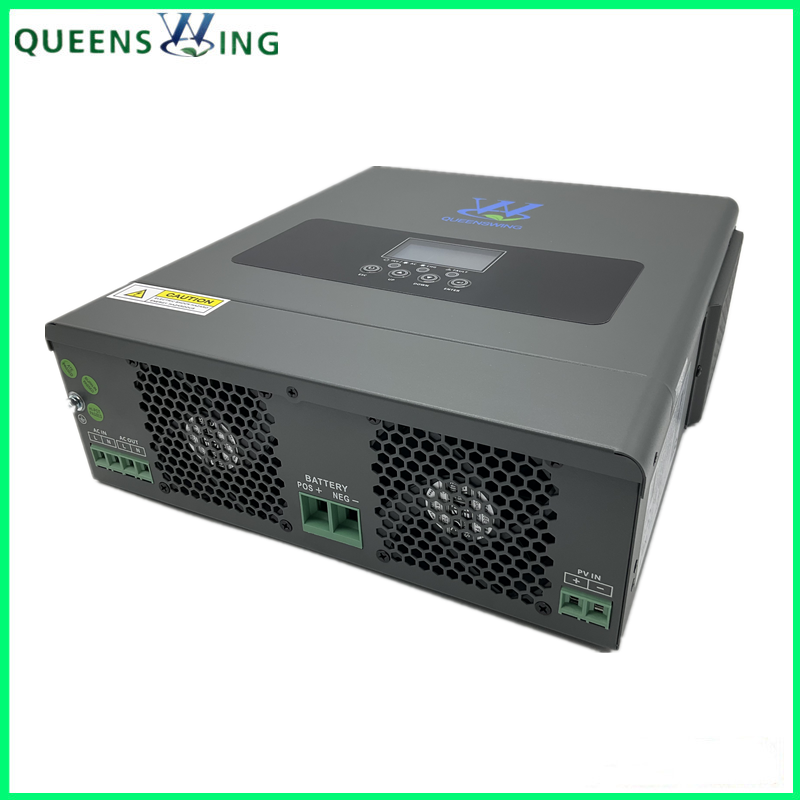

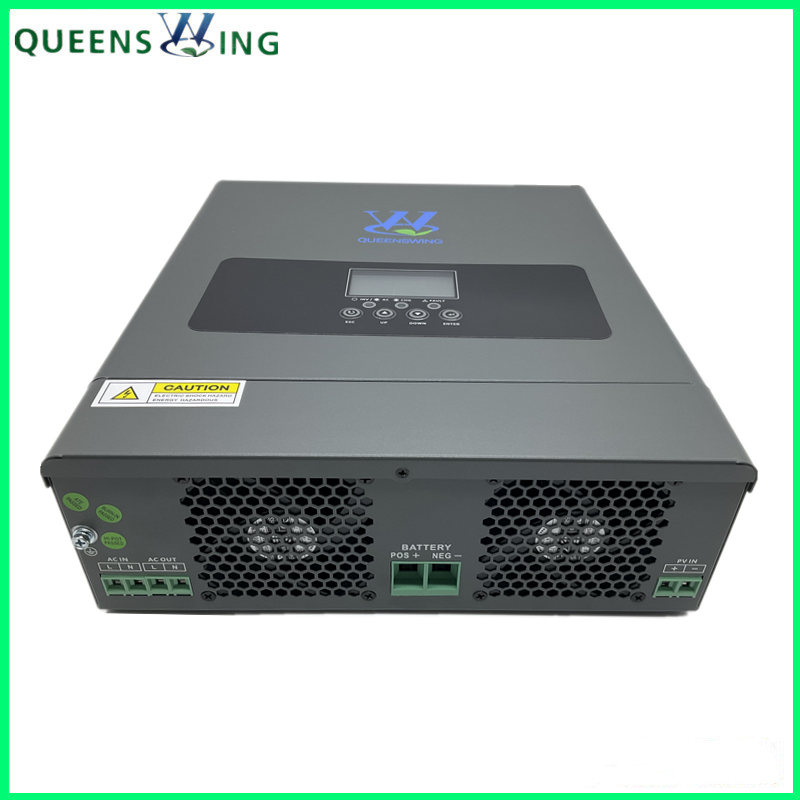

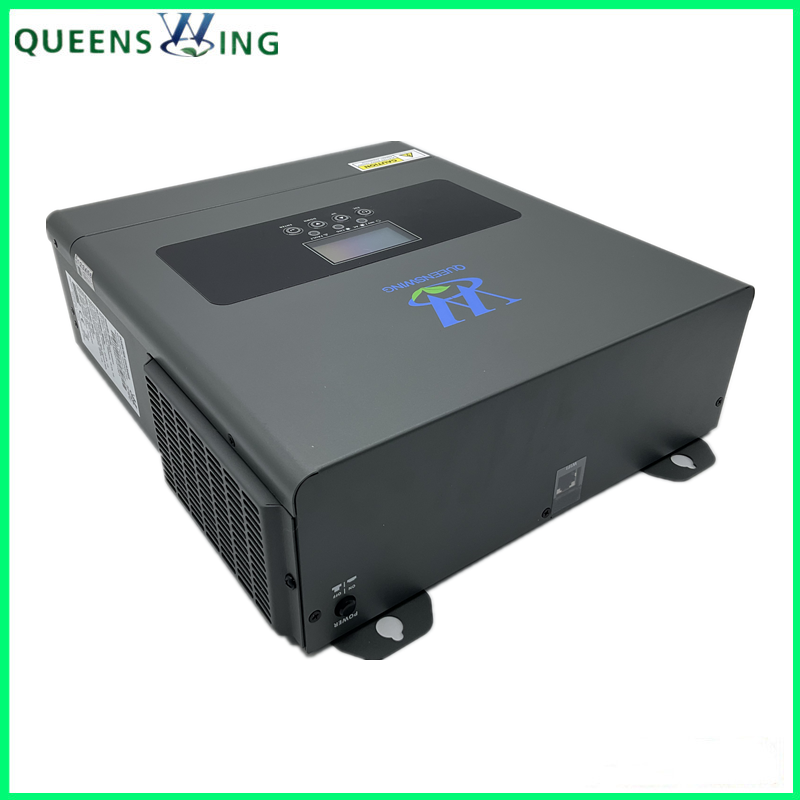

Product name : 3.5KW 24V 100A MPPT Hybrid Solar Power Inverter with PV Input 4000W 30-500VDC
Item : QW3500-24N
 Enlarge Image                   Back
             [Next Product]→


Details:
3.5KW 24V 100A MPPT Hybrid Solar Power Inverter with PV Input 4000W 30-500VDC(QW3500-24N)

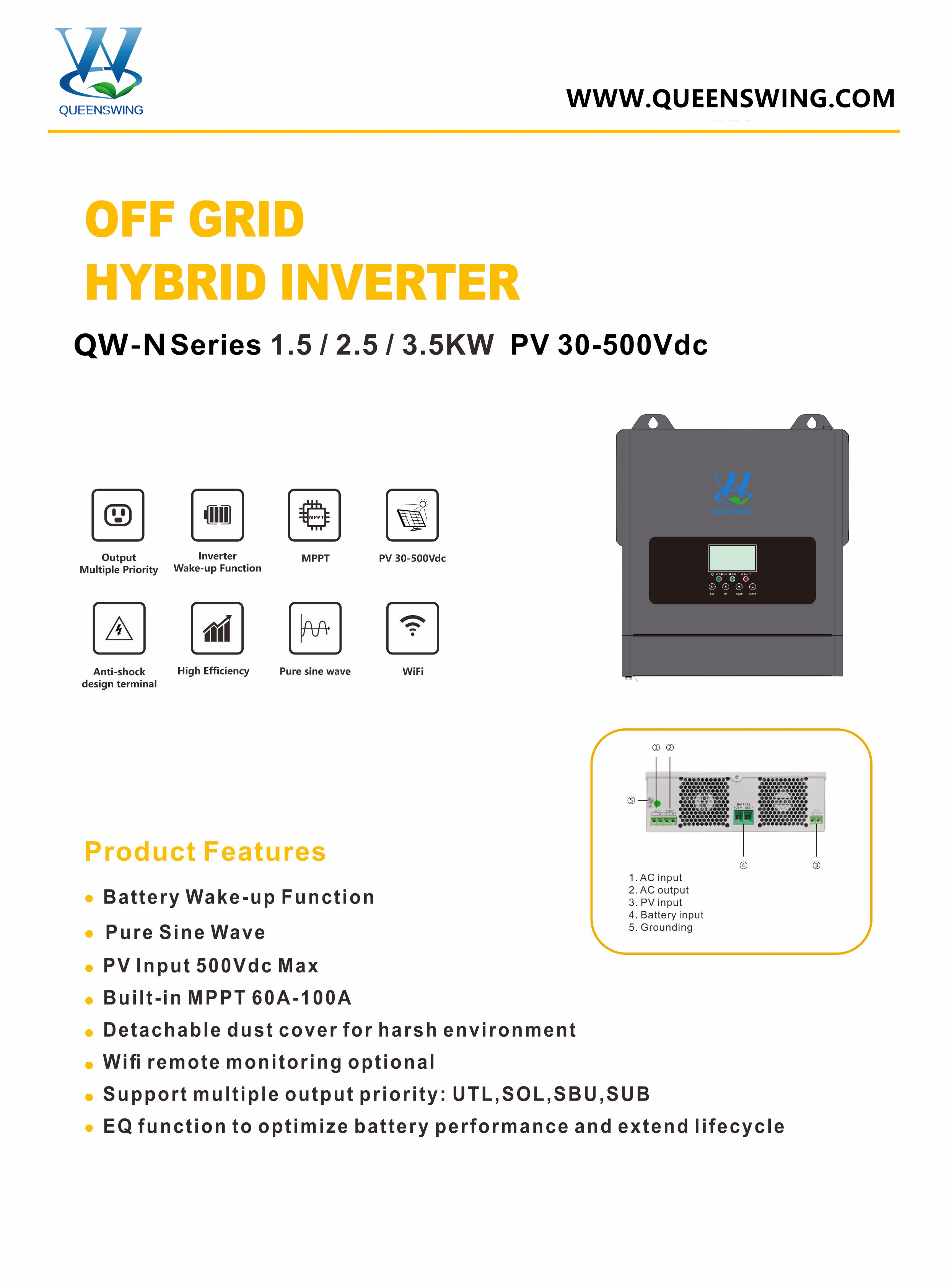

Product Features
• Pure sine wave inverter
• Power Factor 1.0
• High PV input voltage range(30~500VDC)
• MPPT: max 2000W(for 1.5kw), max 4000W(for 3.5kw)
• Built-in 100A MPPT solar charge controller
• Detachable dust cover for harsh environment
• Support multiple output priority: UTL, SOL, SBU, SUB
• EQ function to optimize battery performance and extend lifecycle
• Overload, over voltage, temperature, inverter output short circuit protection
• Intelligent fan speed adjustment
• WiFi remote monitoring (optional)


Product Overview

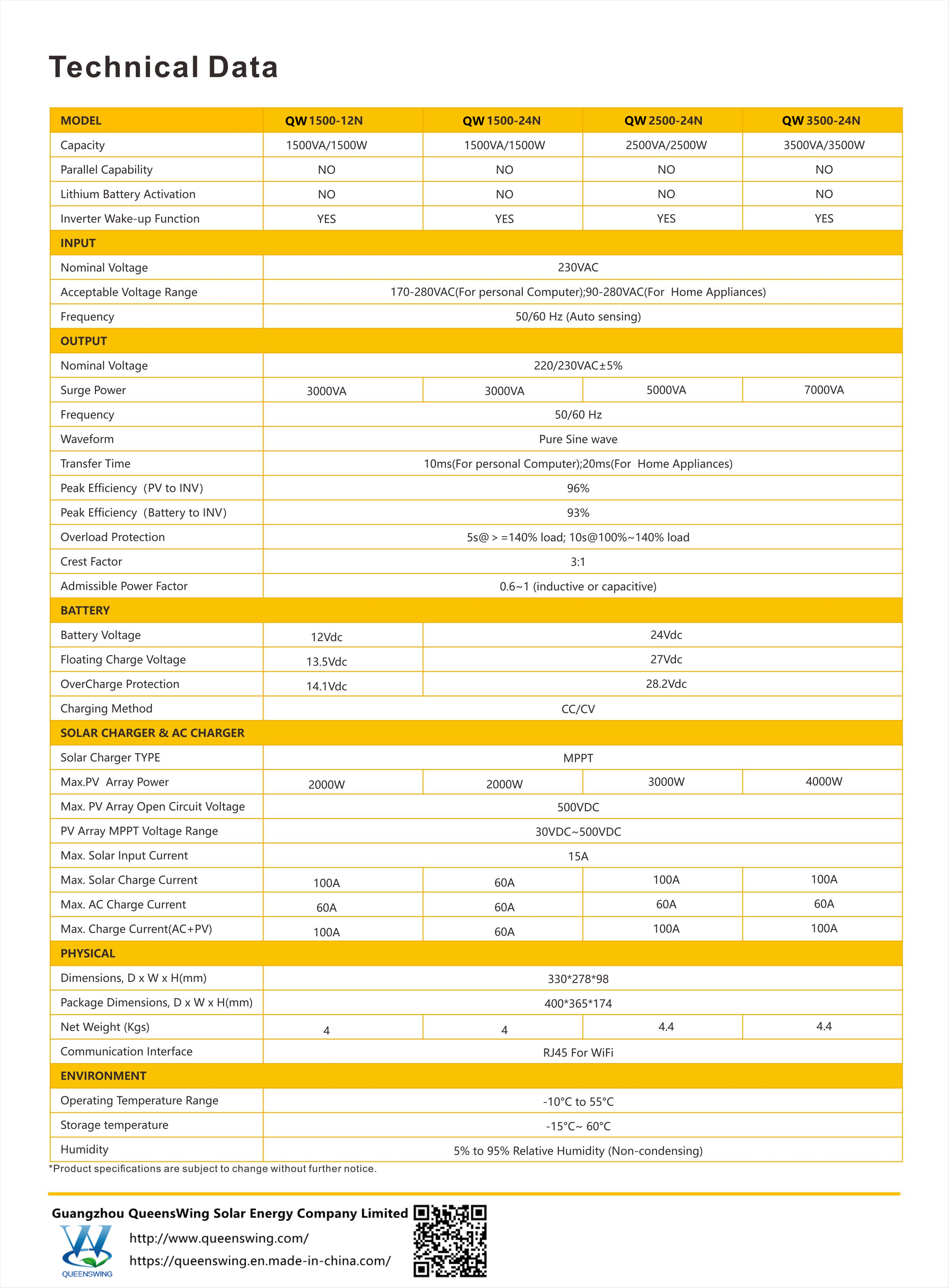

Technical Data

3.5KW 24V 100A MPPT Hybrid Solar Power Inverter with PV Input 4000W 30-500VDC(QW3500-24N)

Model

QW1500-12N

QW3500-24N

Rated Power

1500VA/1500W

3500VA/3500W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances)

Frequency Range

50 / 60Hz (optional)

OUTPUT

AC Voltage Regulation(Batt. Mode)

230 VAC ± 5%

Surge Power

3000VA

7000VA

Transfer Time

10 ms (For Personal Computer)
20 ms (For Home Appliances)

Waveform

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

12 VDC

24 VDC

Floating Charge Voltage

13.5 VDC

27 VDC

Overcharge Protection

16.5 VDC

32 VDC

Maximum AC Charge Current

60A

60A

SOLAR CHARGER

Maximum PV Array Power

2000W

4000W

MPPT Range @ Operating Voltage

30-500VDC

30-500VDC

Maximum PV Array Open Circuit
Voltage

500VDC

500VDC

Maximum Charging Current

100A

100A

PHYSICAL

Dimension, D x W x H(mm)

400x365x174mm

400x365x174mm

Gross Weight(kg)

5

5.5

Communication Interface

RJ45 for WiFi

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10ºC - 55°C

Storage Temperature

-15ºC - 60°C

Product specifications are subject to change without further notice

MODEL

QW1500-12N

QW3500-24N

Inverter Power

1500W

3500W

Pmax.generated from solar charger

100Amp, 2000W

100Amp, 4000W

Best Panel Configuration

450Wp x 4pcs
4pcs in serial

550Wp x 7pcs
7pcs in serial
