Product name : 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A DC DC Converter 12V 24V to 5V Step Down Buck 12volt to 5volt DC Converter
Item : QW-XW1224-5-5A
 |
| Details: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1A 2A 3A 5A 10A 15A 20A 25A 30A 40A dc dc converter 12v 24v to 5v step down buck 12volt to 5volt dc converter
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model No. |
QW-XW-1224-5-5A-33A |
|
|
|
||
|
Input |
Input Voltage |
DC 12V 24V |
|
Input Voltage Range |
DC 8-40V |
|
|
|
||
|
Output |
Output Voltage |
DC 5V |
|
Output Current |
1-40A Optional |
|
|
Output Power |
25-200W Optional |
|
|
Conversion Efficiency |
> 93% |
|
|
Ripple (Full load test) |
40mV |
|
|
No-load current |
17mA |
|
|
Working Temperature |
-40~85ºC |
|
|
Waterproof Rating |
IP67 |
|
|
Cable Length |
13-14cm |
|
|
Protection |
Over-current /Over-voltage/Over-heat /Short-circuit protection |
|
|
1-5A Output |
Plastic 46*32*18MM, 53g/pc |
|
|
1-5A Output |
Aluminum 44*25*22MM, 45g/pc |
|
|
10-30A Output |
Aluminum 74*74*32MM, 260g/pc |
|
|
40A Output |
Aluminum 100*80*39MM, 550g/pc |
|
|
Packing |
Carton 48*33*32cm, GW:20KG |
|
Attention:
Pls install according to the the label strictly,positive pole and nagative pole can't be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

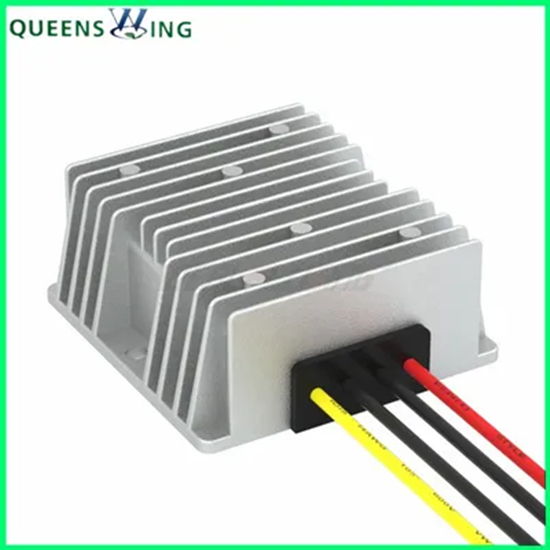

Product Pictures
Features:
|
Type |
Model/ Series |
Voltage convert |
Output Current |
|
Boost |
XW-DTD5S12** |
5v to 12v |
1/2/3/5/8/10A |
|
XW-DTD12S13.8** |
12v to 13.8v |
1/2/3/5/8/10/18A |
|
|
XW-DTD12S15** |
12v to 15v |
1/2/3/5/8/10/15A |
|
|
XW-DTD12S19** |
12v to 19v |
5/8/10/15/20A |
|
|
XW-DTD12S24** |
12v to 24v |
1/2/3/5/8/10/15/20/25/30/40A |
|
|
XW-DTD12S28 |
12v to 28v |
3/5/8/10/15/20/25/30/40A |
|
|
XW-DTD12S32/36** |
12v to 32v/36v |
1/2/3/5/6/10/12/15/20/30A |
|
|
XW-DTD12S48** |
12v to 48v |
1/2/3/4/5/8/10/15/20A |
|
|
XW-DTD24S48** |
24v to 48v |
3/5/10/20/32/42A |
|
|
Buck |
XW-DTD1224S3.3-9** |
12v/24v to 3.3-9v |
1/2/3/5/10/15/20/30/50/60A |
|
XW-DTD24S12** |
24v to 12v |
1/2/3/5/8/10/15/20/30/40/50/60/85A |
|
|
XW-DTD3648S5** |
36v/48v to 5v |
3/5/6/8/10/12/15/20/25A |
|
|
XW-DTD3648S12** |
36v/48v to 12v |
5/10/15/20/25A |
|
|
XW-DTD3648S24** |
36v/48v to 24v |
5/8/10/12/15/18/20A |
|
|
XW-DTD48S36** |
48v to 36v |
5/10A |
|
|
XW-DTD60S5** |
60v to 5v |
5/10/15/20A |
|
|
XW-DTD60S12** |
60v to 12v |
5/8/10/12/15/20A |
|
|
XW-DTD60S24** |
60v to 24v |
5/10/15A |
|
|
XW-DTD60S36** |
60v to 36v |
3/5/8/10/15A |
|
|
Auto Buck and Boost |
XW-DTD12S12 |
12v to 12v |
1/2/3/4/6/8/10/12A |
|
XW-DTD12S13.8 |
12v to 13.8v |
3/5/10A |
|
|
XW-DTD24S24 |
24v to 24v |
1/2/3/5/8/10A |
Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.
Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.
Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
