Feature:
- The whole process is executed by CPU intelligent program.
- Pure sine wave output: Relative to the square wave or modified sine wave ( Step wave), it have a stronger effect in loading or load capacity.
- Available with capacitive load, inductive load and any other type of general-purpose AC load, if it runs a refrigerator, television or radio equipment, there would be no interference and noise and will not affect the load equipment performance and life.
- High stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse and improved protection, stability of the system.
- Digital intelligent control: The core device is controlled by a powerful micro-controller, making the external circuit structure being simple, control being flexible and control strategy being powerful, thus ensuring excellent performance and stability
- UPS and charger function

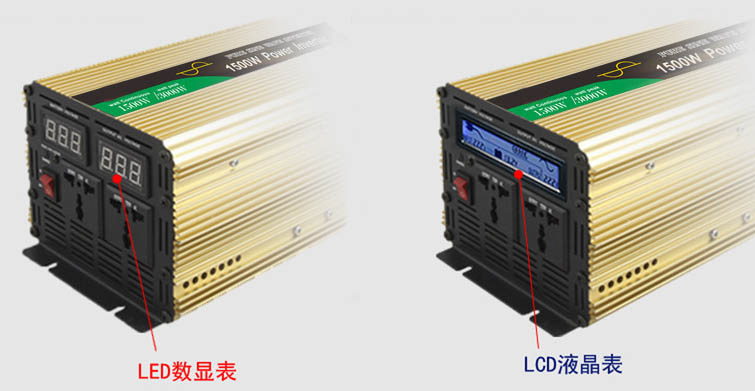

Display:
LED(Digital Display): Input Voltage and Output Voltage
Technical Parameter:
Model No. |
QW-1500UPSD |
QW-1500UPSL |
Voltage Display |
Digital Display |
LCD |
Rated Power |
1500W |
Peak Power |
3000W |
Transfer efficiency |
≥90% |
Circuit Topology |
push-pull type; the whole process is executed by CPU intelligent program |
Waveform |
Pure Sine Wave |
Waveform Distortion |
≤5%(linear load) |
No Load Current |
≦1A |
Input Voltage |
12V or 24V DC (option) |
Output Voltage |
110V, 120V, 230V or 220V DC (option) |
Input Voltage Range |
11V~15VDC or 21V~29VDC |
Output Voltage Range |
85~135V or 170~265V(option) |
Low Voltage Alarm |
11VDC±0.5V or 21VDC±0.5V |
Over Voltage Cut-off |
≥15VDC or ≥29VDC |
Output Voltage |
220VAC±5% |
Over-load Protection |
1500W-1600W |
Cooling Way |
Intelligent Cooling Fans |
Fan Start Temperature |
≥40±5℃ |
Temperature Protection |
70±5℃ |
Frequency |
50Hz or 60Hz ± 0.5%(option) |
Charger |
20A |
UPS Transfer |
Inverter use city power first, when city power cut off suddently,
inverter transfer to use battery power auto, and the transfer time is within 10mS. |
Protection |
Input low-voltage, Input high-voltage, Over-Load, Short-circuit, Over-temperature and Reverse connection protection. |
Green LED indicator |
Lighting(working);
Flash slow(lack voltage);
Flash fast(fault occur and the unit is in protection situation) |
Yellow LED indicator |
Lighting (fully charge);
Flashing (charging);
off (no AC supply or in AC input voltage protection situation) |

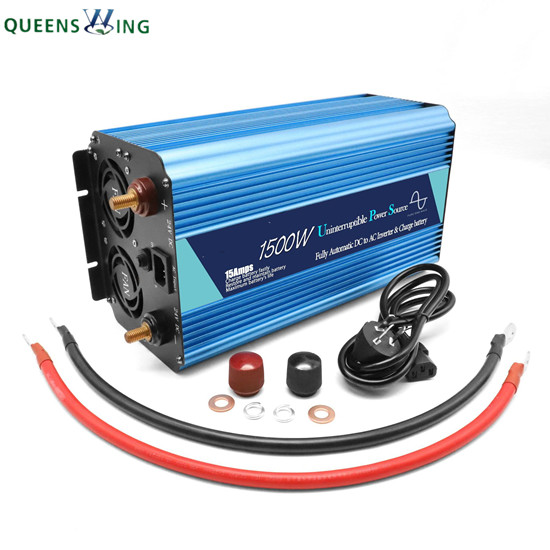

Packaged |
1*pair battery cable(red & black)
1*bag fuses
1*charge cable
1*english user manual
1*neutral packing box |
Dimension |
Inverter: 270*150*125mm/4.2kg
Carton: 445*415*397mm/18kg/4pcs |
Certifications |
CE、Rohs |

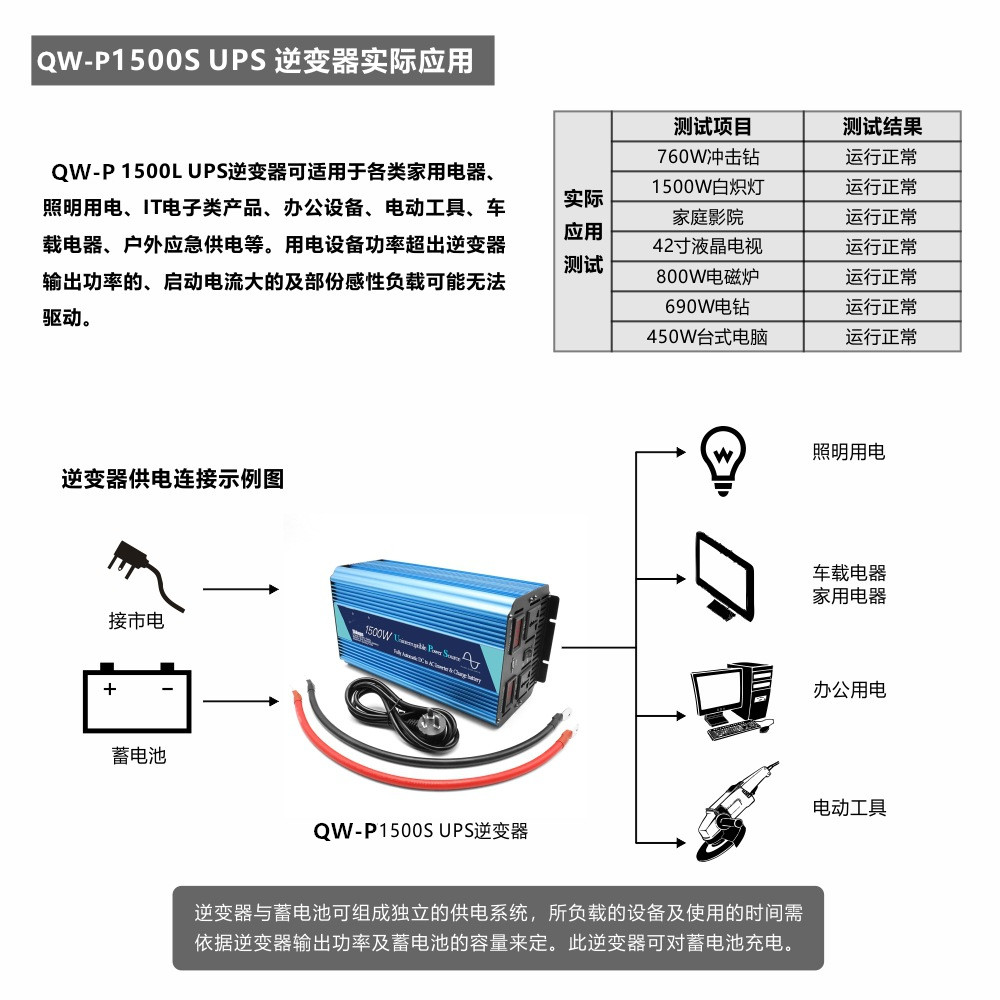

Application:
1. In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2.Industry equipments series: solar energy, wind power, gas discharge lamp and etc.
3.Office area: Computer, printer, copier, scanner, digital camera and etc.
4. Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.
5.House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6.Power tool series: electric saw, drilling machine, punching machines,air compressor ect.
Testing Video: https://youtu.be/3wGlA0wd43k
|
