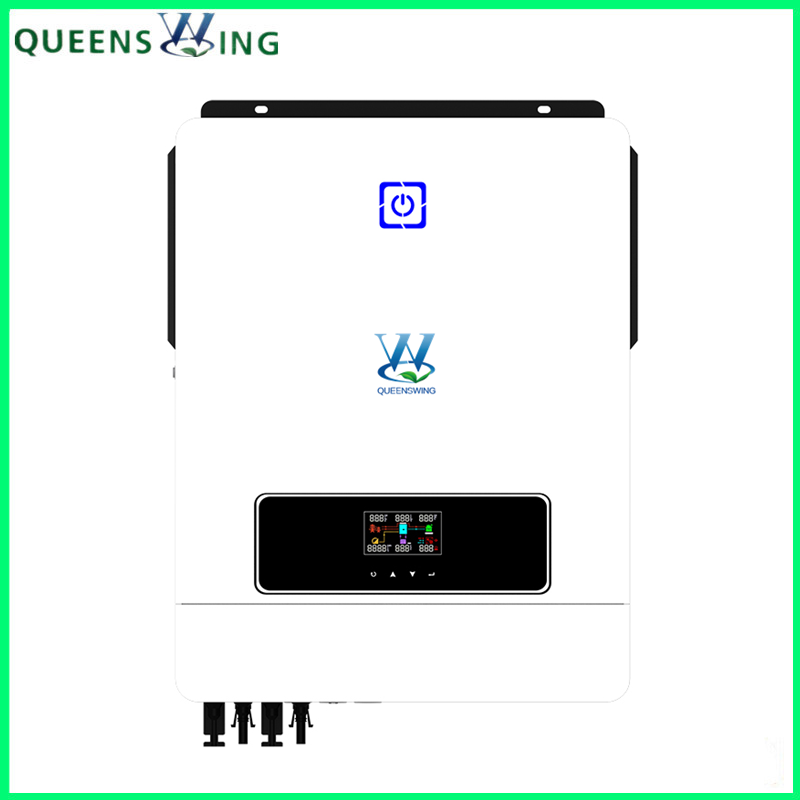

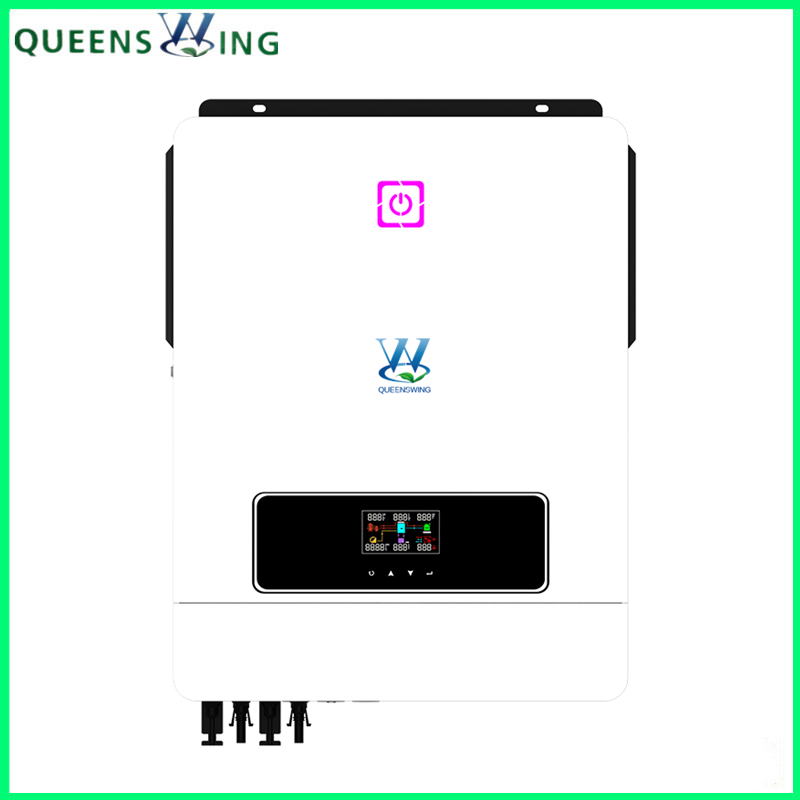

Product name : 8.2KW 48VDC 160A MPPT Solar Charger UPS Hybrid Inverter can work without battery
Item : QW-MPS8.2KW
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

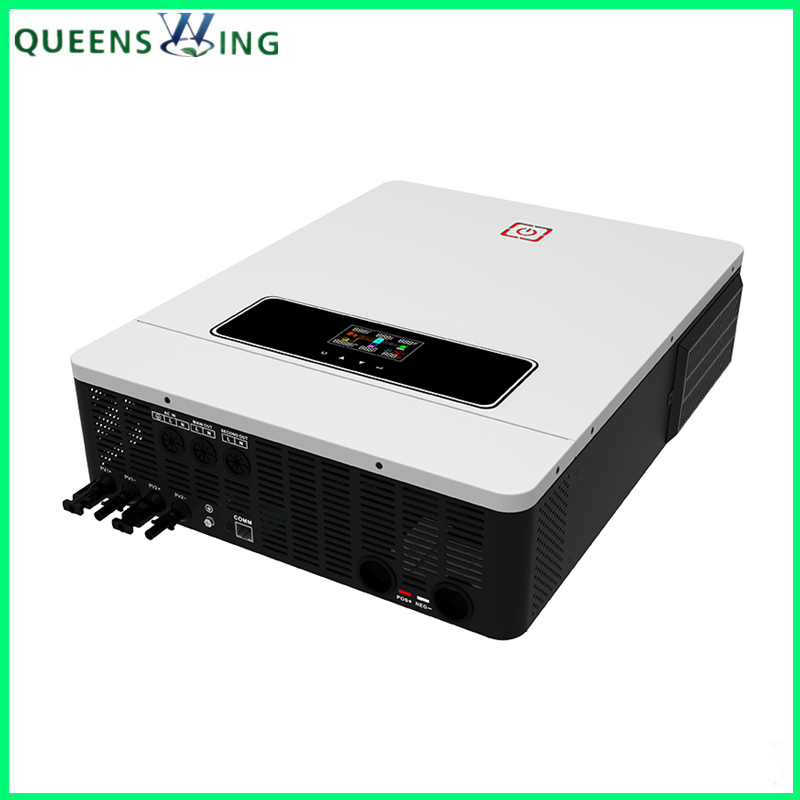

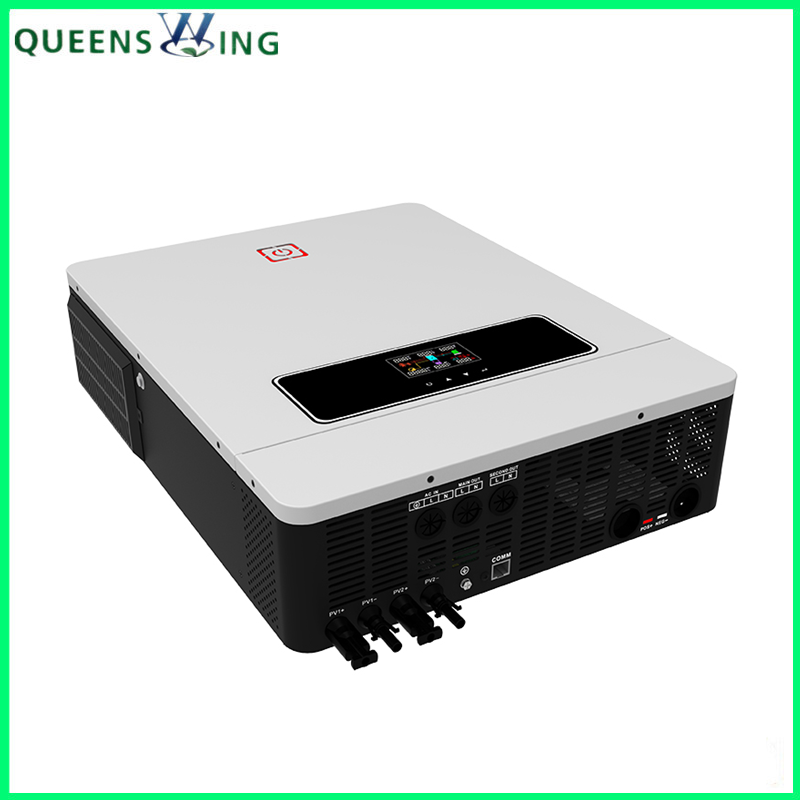

8.2KW 48VDC 160A MPPT Solar Charger UPS Hybrid Inverter can work without battery(QW-MPS8.2KW)

Product Features
• Pure sine wave inverter(on/off grid)
• Dual Output
• Touch Buttom
• Inverter running with or without battery
• One-key restoration to factory settings
• Built-in lithium battery automatic activation
• High PV input voltage range(90~500VDC)
• Built-in 160A MPPT solar charge controller
• Smart battery charge design to optimize battery life
• Overload,high temperature,inverter output short circuit protection
• Cold start function
• Intelligent fan speed adjustment
• Selectable charging current based on applications

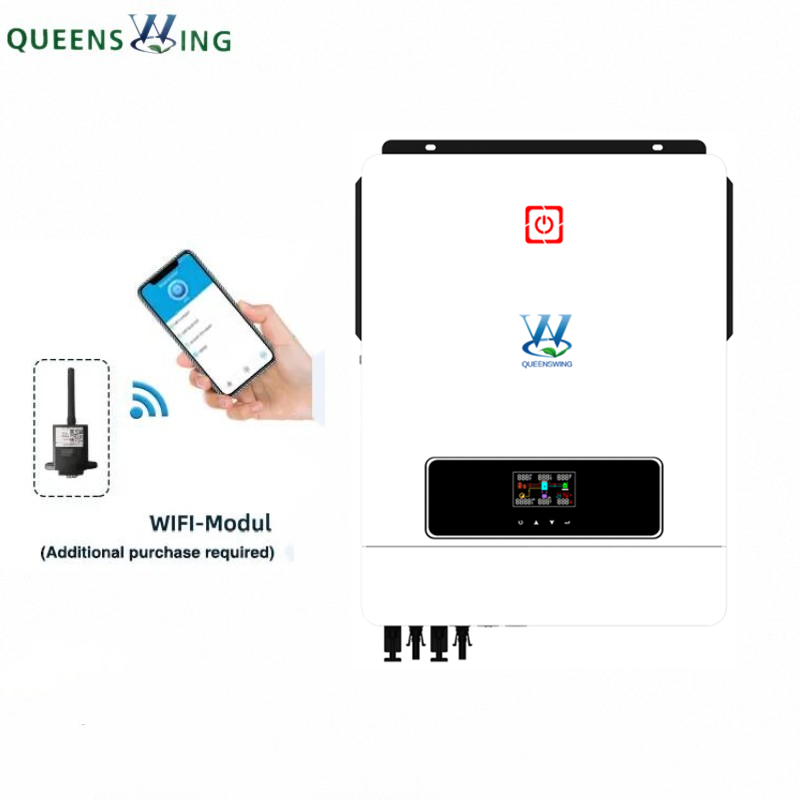

• WIFI&GPRS available for IOS and android(optional)
• MPPT: max 8200W(for 7.2kw, 8.2kw), max 10200W(for 10.2kw)

Product Overview

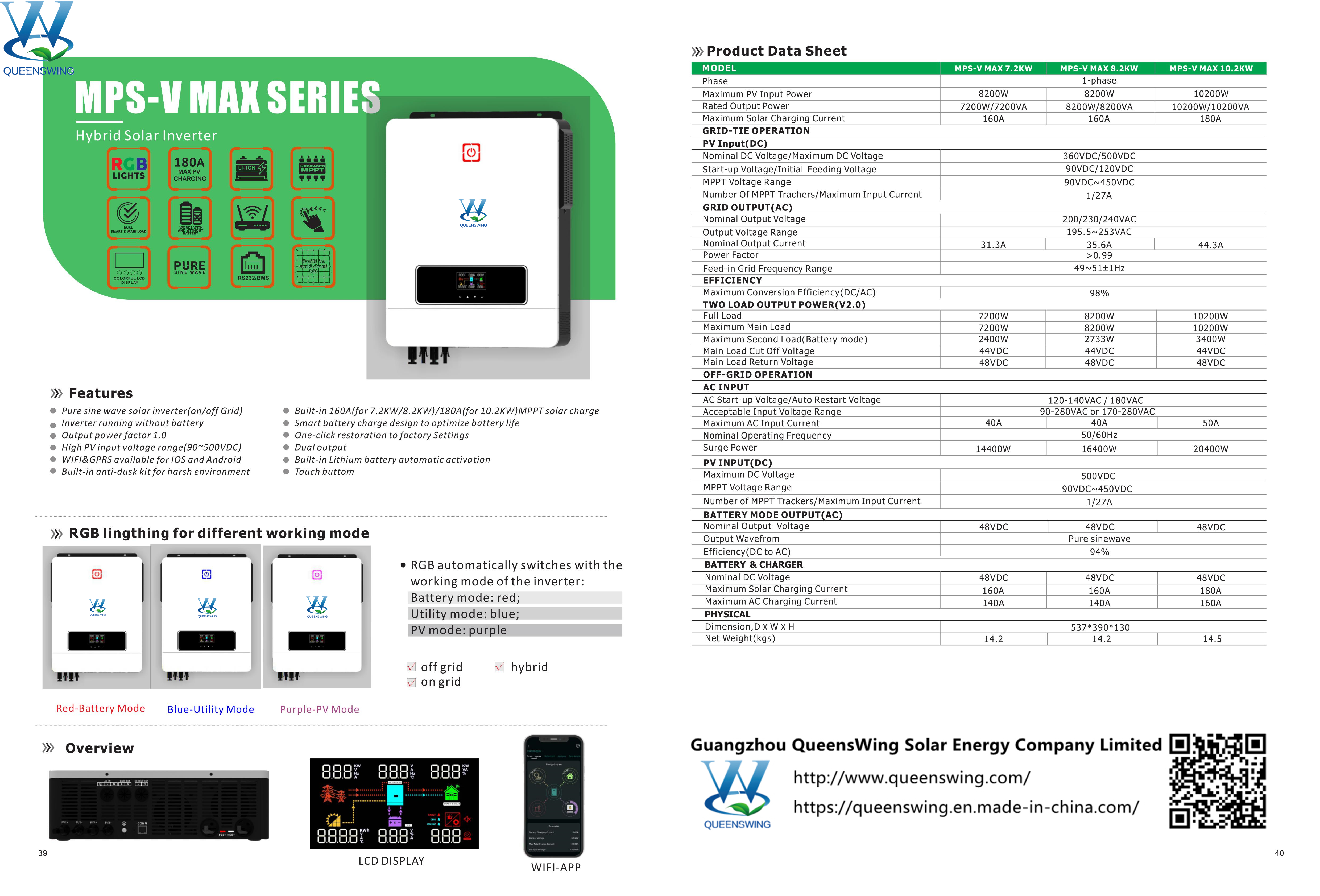

Technical Data

8.2KW 48VDC 160A MPPT Solar Charger UPS Hybrid Inverter can work without battery

Model

7.2K-48V

8.2K-48V

10.2K-48V

Rated Power

7200VA/7200W

8200VA/8200W

10200VA/10200W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances)

Frequency Range

50 / 60Hz (optional)

OUTPUT

AC Voltage Regulation(Batt. Mode)

230 VAC ± 5%

Surge Power

14400VA

16400W

20400VA

Transfer Time

10 ms (For Personal Computer)
20 ms (For Home Appliances)

Waveform

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

48 VDC

48 VDC

48 VDC

Floating Charge Voltage

54 VDC

54 VDC

54 VDC

Overcharge Protection

62 VDC

62 VDC

62 VDC

Maximum AC Charge Current

140A

140A

140A

SOLAR CHARGER

Maximum PV Array Power

8200W

8200W

10200W

MPPT Range @ Operating Voltage

90-450VDC

90-450VDC

90-450VDC

Maximum PV Array Open Circuit Voltage

500VDC

500VDC

500VDC

Maximum Charging Current

160A

160A

160A

Maximum Efficiency

98%

98%

98%

PHYSICAL

Dimension, D x W x H(mm)

540x390x130mm

540x390x130mm

540x390x130mm

Gross Weight(kg)

16.5

16.5

16.5

Communication Interface

RS232(Standard)
GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10ºC - 55°C

Storage Temperature

-15ºC - 60°C

Product specifications are subject to change without further notice

MODEL

7.2K-48V

8.2K-48V

10.2K-48V

Inverter Power

7200W

8200W

10200W

Pmax. Generated from solar charger

160Amp, 8200W

160Amp, 8200W

160Amp, 10200W

Best Panel Configuration

250Wp x 36pcs
12pcs in serial, 3sets in parallel

250Wp x 36pcs
12pcs in serial, 3sets in parallel

250Wp x 40pcs
10pcs in serial, 4sets in parallel)
